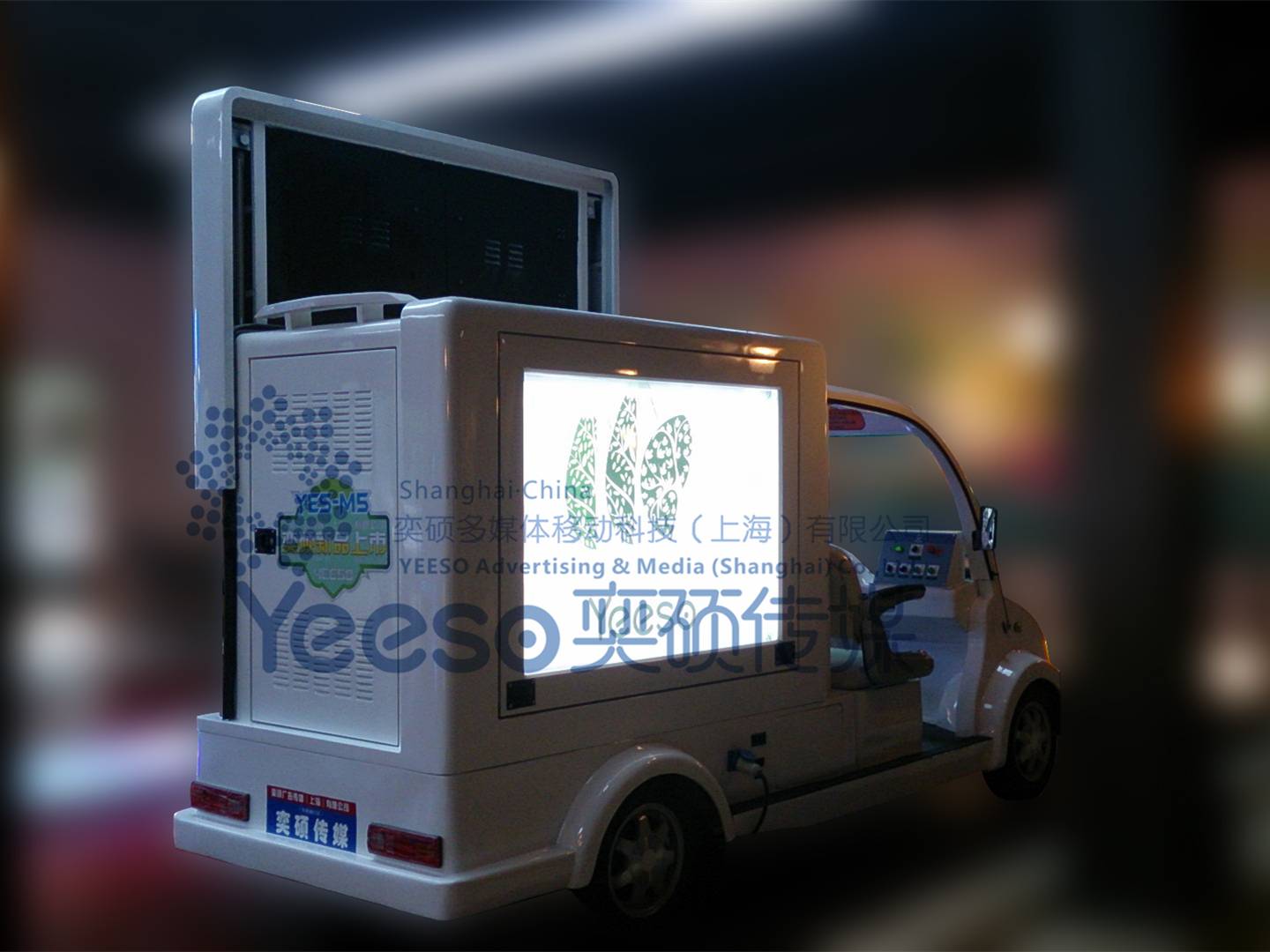

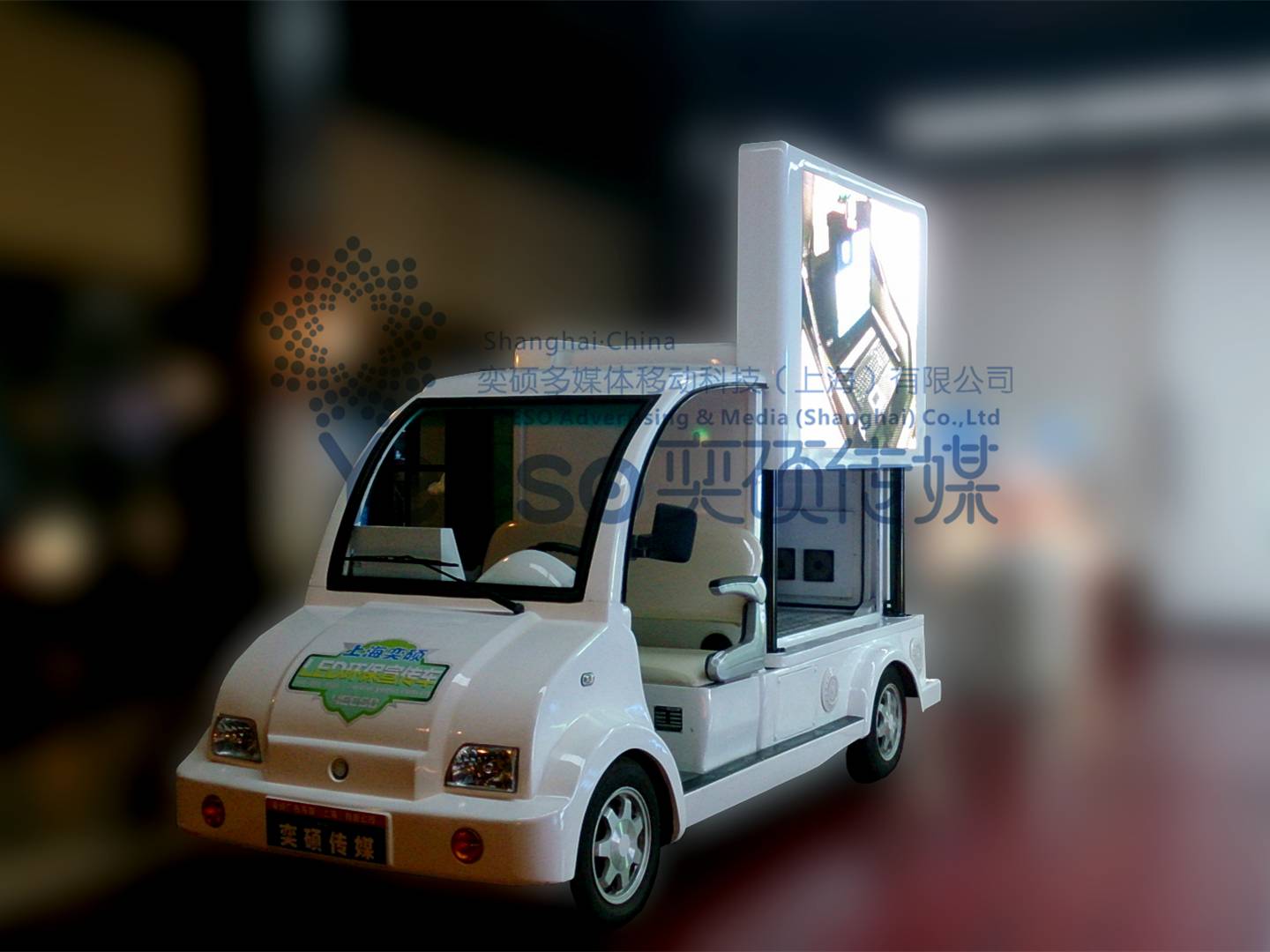

Mini LED Advertising Car, YES-M5

Product number：：YES-M5

◎ Four wheels electric chassis, flexible and fancy design

◎ Vehicle specified LED Display，equipped with hydraulic lifting system

◎ Interior generator/battery power supply system，can last for long time running.

◎ interior space to load good

Tech parameter of YES-M5 LED advertising Car
chassis parameter
Brand	YEESO	External dimension	4200mm×1400mm×2000mm
Power	Electric	weight	720KG
Speed	30km/h	Curb weight	1700KG
Power on time	8~10h	Milage	60km
LED Display and Scrolling light box
LED Screen dimension	1344mm×1056mm	Pixel	6mm
LED Chip	R、G、B: Epistar	Module Dimension	192mm（W）×192mm（H）
Brightness	≥6500cd	Max power consumption	1000W/㎡
average power	500W/㎡	life span	100000H
LED screen control system	asynchronous control system
scrolling light box size	1300mm×1000mm	lighting	LED light bar
LED screen lifting system
lifting system	hydraulic lifting，support 1T	lifting height	1100mm
Electric system
input voltage	220V	output voltage	220V
currency	16A	average power consumption	0.5wh/㎡
Battery	150A×6 sets	Power	3KW
Multimedia control system
Control system	asynchronous control card	speakers	30W
External frame structure
surface color	pure white	metal plate structure	cold rolled board
water process	whole vehicle glue pouring
optional fittings
1.LED screen resolution（P10、P8、P6）、LED screen size 2.Vehicle surface color（depend on client's requirement） 3.Generator 4.Computer, video processor, power amplifier
