LED Billboard Truck,YES-V18
Product number：：YES-V18
-
LED Billboard Truck,YES-V18 -
LED Billboard Truck,YES-V18 -
LED Billboard Truck,YES-V18 -
LED Billboard Truck,YES-V18 -
LED Billboard Truck,YES-V18

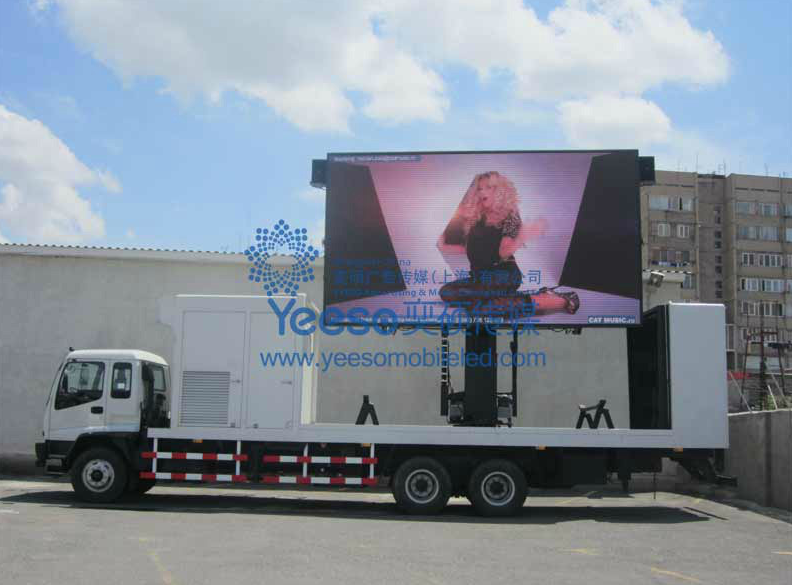

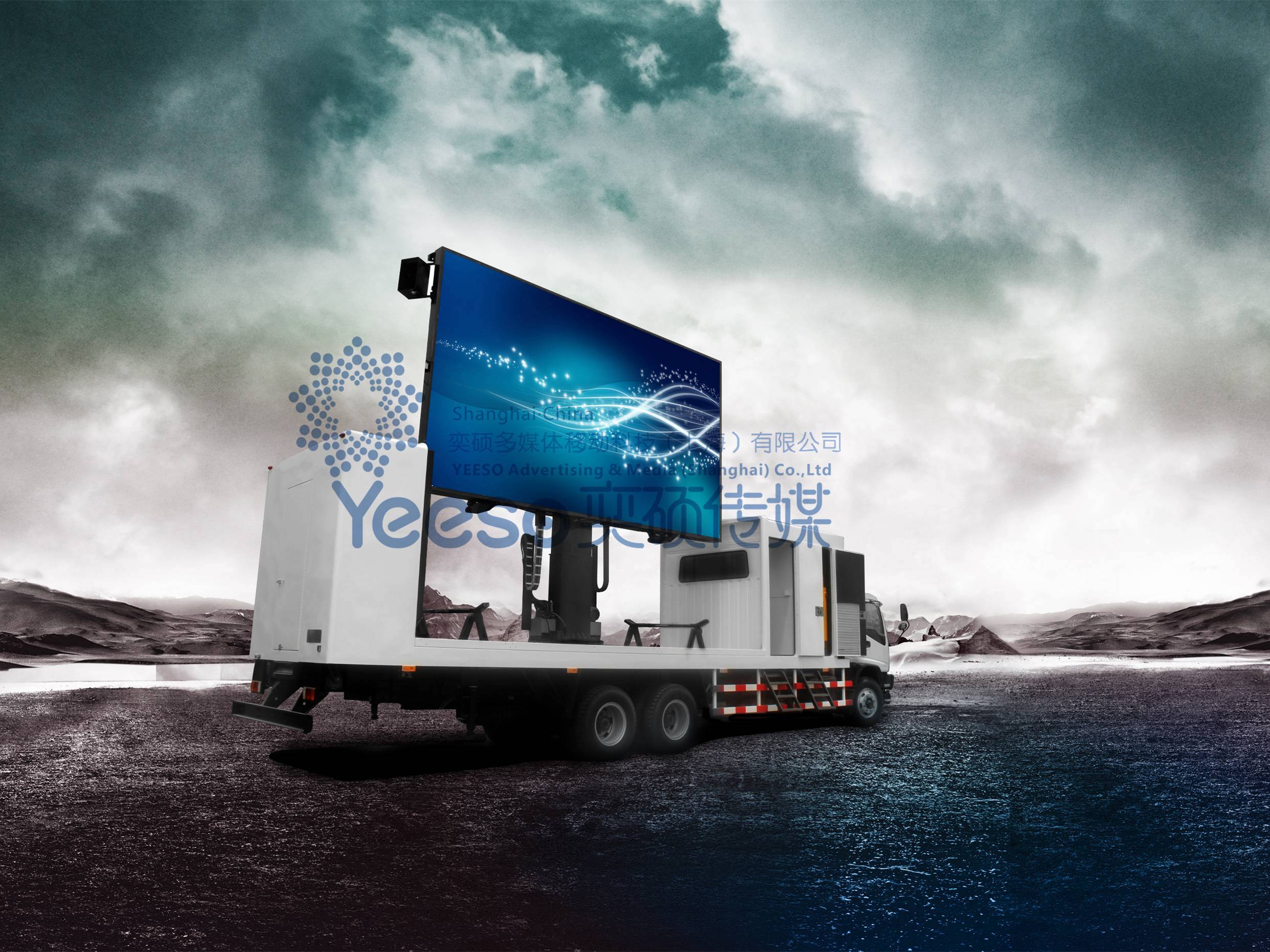

◎ 18 square meters large LED display board, 12.6-meter-long truck body

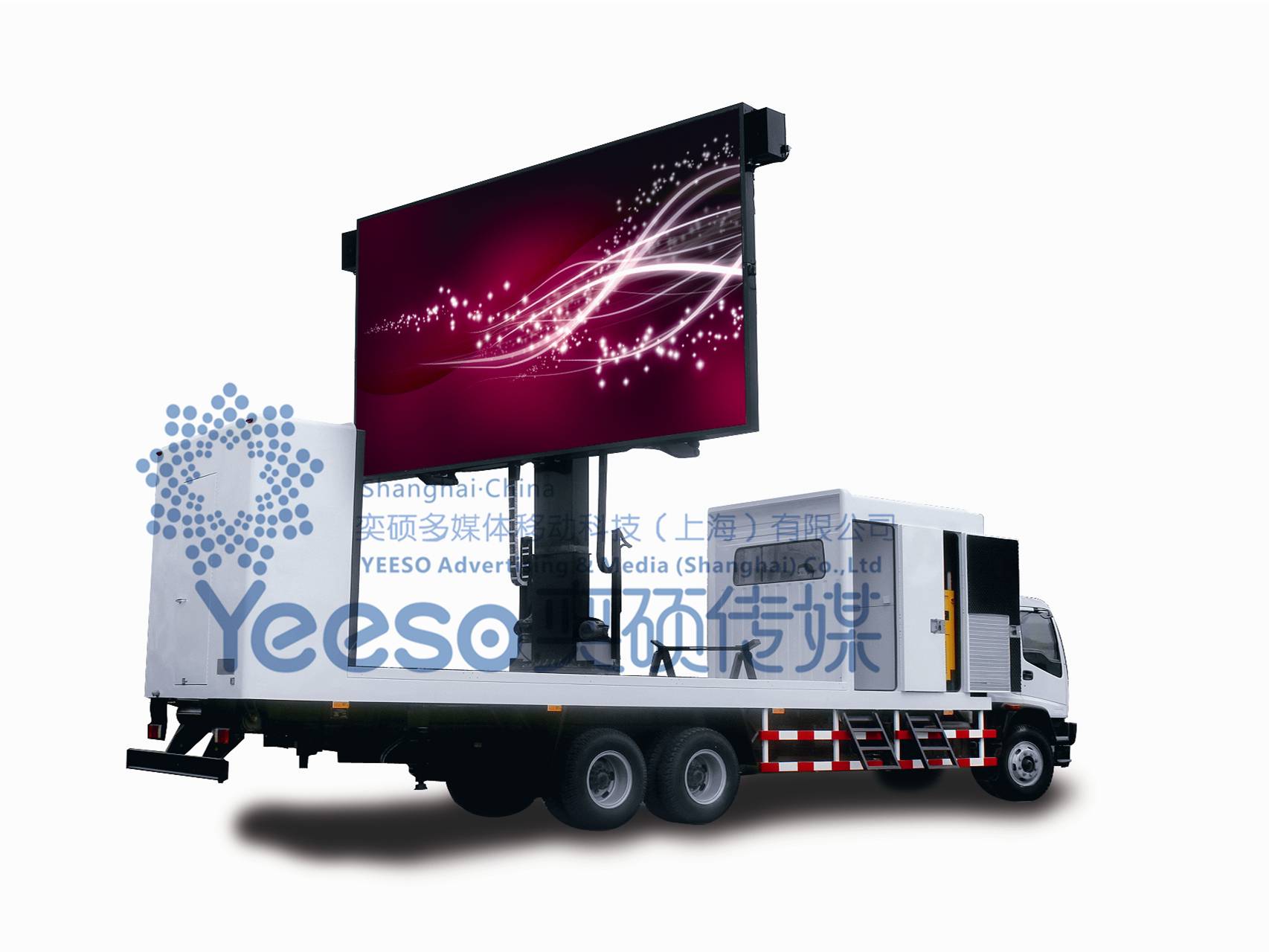

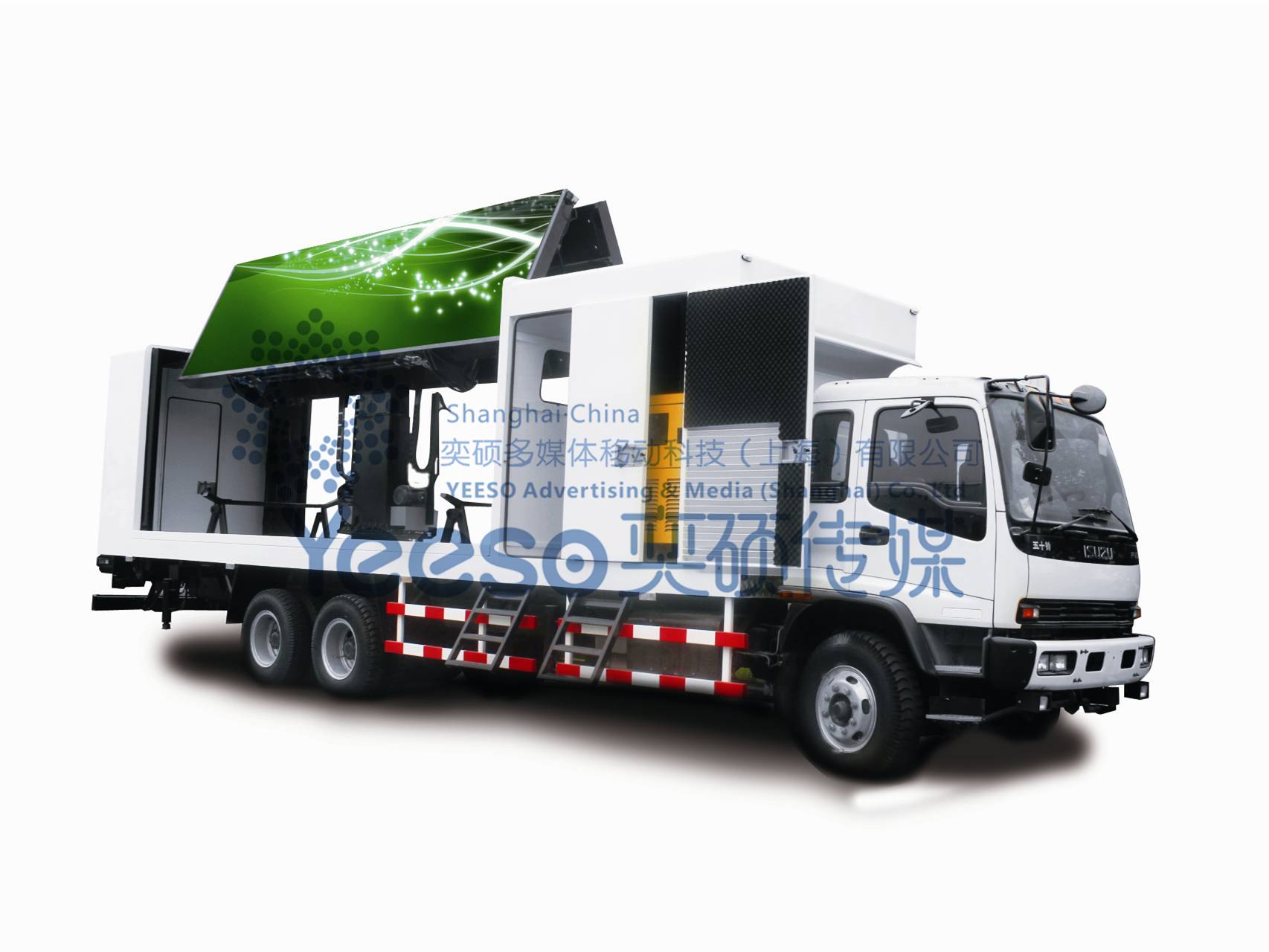

◎ The screen can rotate, fold up and lift up by hydraulic cylinders.
◎ intelligent media control room

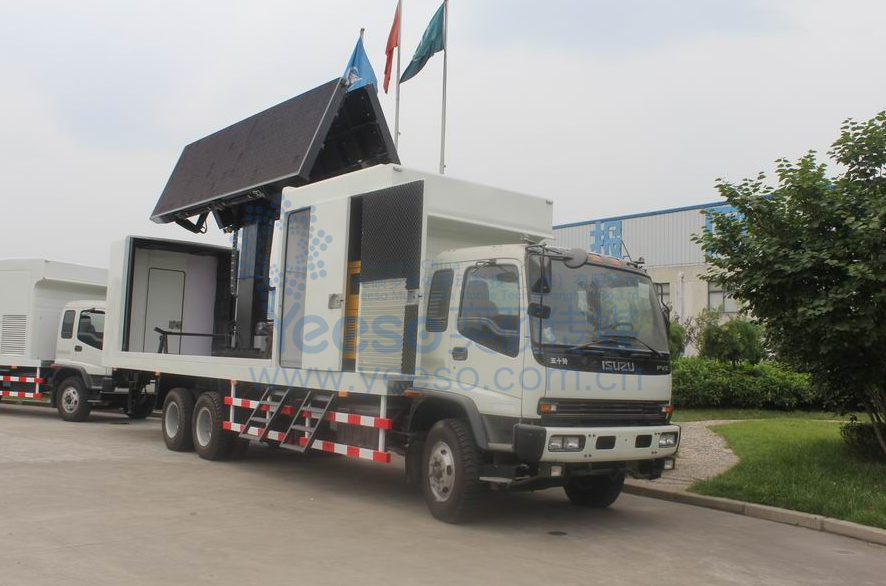

◎ external protection shield + Wireless Remote control function
| Tech parameters of YES-V18 LED advertising truck | |||
| chassis details | |||
| Brand | YEESO | External dimension | 12650mm×2550mm×3830mm |
| Minimum turning radius | ≤18000mm | Total | 16000kg |
| Mounted LED Screen | |||
| LED Screen dimension | 5760mm×3200mm | Pixel | 10mm（P8、P6 optional） |
| LED chip |
R、G、B: Epistar |
module dimension | 160mm（W）×160mm（H） |
| Brightness |
≥6500cd |
max power comsumption | 1000W/㎡ |
| average power consumption | 500W/㎡ | Life span | 100000H |
| LED screen control system | synchronous control system |
|
|
| Mechanical control devices | |||
| Screen folding, lifting system | Hydraulic lifting， support 3T | Lifting height | 2200mm |
| Hydraulic supporting legs | Four supporting legs，lift up 300mm，each support 5T，can stand against wind level 8 | screen rotating system | hydraulic rotating system |
| Electric system | |||
| Generator dimension | 2250mm×950mm×1300mm | power | 30KW |
|
Power |
super quiet generator | displacement | 4.33L |
| input voltage | 380V | output voltage | 220V |
| current | 60A | average power consumption | 0.5wh/㎡ |
| Multimedia control system | |||
| power amplifier | 200W | speaker | 200W |
| Industrial computer | Core Duo CPU / 1G graphics card / 500G hard disk / DVD / 2G memory | LCD monitor | 15 inch KVM keyboard and mouse |
| External frame structure | |||
| surface glue paint | Pure white | metal plate structure | 1.5mm cold rolled board |
| LED screen cover |
organ style |
protection cover | water proof |
| Optional fitting | |||
|
1.LED screen resolution（P10、P8、P6） 2.surface color painting（according to client's request） 3.video processor 4,asynchronous control system
|
|||
