LED Screen Truck,YES-V16
Product number：：YES-GA8
-
LED Screen Truck,YES-V16 -
LED Screen Truck,YES-V16 -

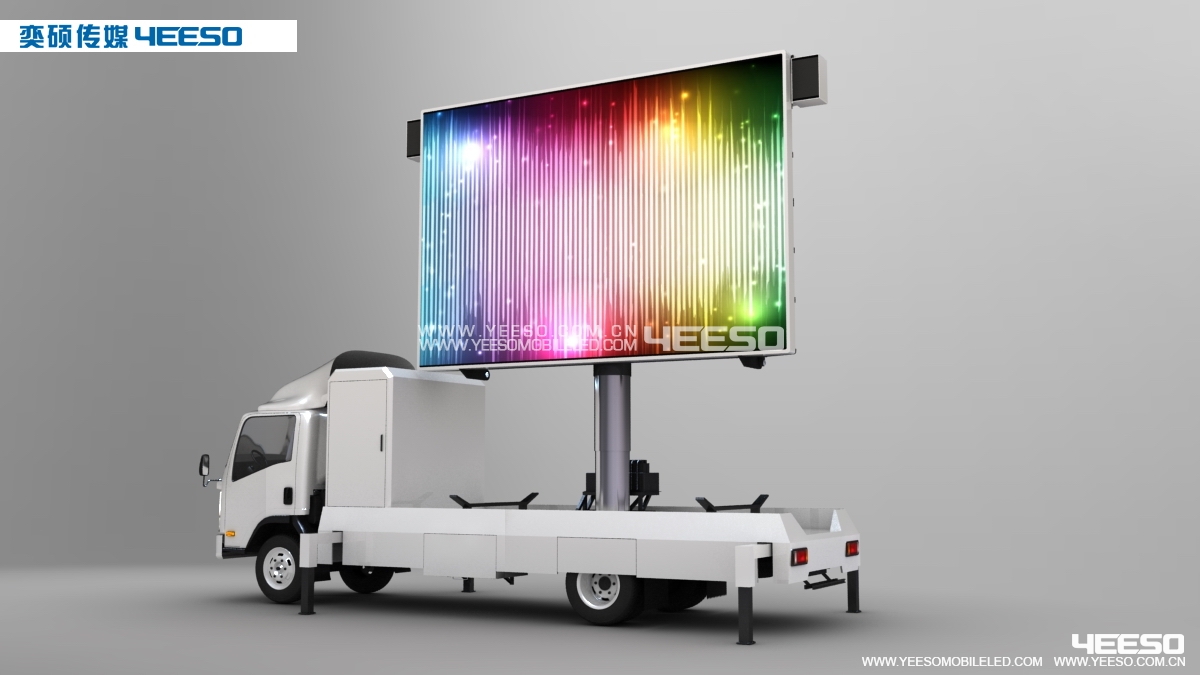

LED Screen Truck,YES-V16
◎ 15 square meters large LED display board, 8 meter-long truck body
◎ The screen can rotate, fold up and lift up by hydraulic cylinders.
◎ intelligent media control room and power supply room
◎ external protection shield + Wireless Remote control function
| Tech parameters of YES-V16 LED advertising truck | |||
| chassis details | |||
| Brand | YEESO | External dimension | 7900mm*2300mm*3750mm |
| Minimum turning radius | ≤12000mm | Total | 9950kg |
| Mounted LED Screen | |||
| LED Screen dimension | 4800mm×3200mm | Pixel | 8mm（P10、P6 optional） |
| LED chip |
R、G、B: Epistar |
module dimension | 256mm（W）×128mm（H） |
| Brightness |
≥6500cd |
max power comsumption | 1000W/㎡ |
| average power consumption | 500W/㎡ | Life span | 100000H |
| LED screen control system | synchronous control system |
|
|
| Mechanical control devices | |||
| Screen lifting system | Hydraulic lifting， support 3T | Lifting height | 2000mm |
| Screen folding system | Screen fold automatically | screen rotating system | hydraulic rotating system |
| Electric system | |||
| Generator dimension | 1510mm×900mm×1060mm | power | 16KW |
|
Power |
super quiet generator | displacement | 1.995L |
| input voltage | 380V | output voltage | 220V |
| current | 50A | average power consumption | 0.5wh/㎡ |
| Multimedia control system | |||
| power amplifier | 200W | speaker | 200W |
| Industrial computer | Core Duo CPU / 1G graphics card / 500G hard disk / DVD / 2G memory | LCD monitor | 15 inch KVM keyboard and mouse |
| External frame structure | |||
| surface glue paint | Pure white | metal plate structure | 1.5mm cold rolled board |
| LED screen cover |
organ style |
protection cover | water proof |
| Optional fitting | |||
|
1.LED screen resolution（P10、P8、P6） 2.surface color painting（according to client's request） 3.video processor 4,asynchronous control system
|
|||
