LS02 LR Series----Indoor 360°Rotating LED display Cube
1,Specification
|
Indoor RGB full color LED Display |
|||
|
Product model |
P2.5/I |
P3/I |
P4/I |
|
Application field |
Indoor |
Indoor |
Indoor |
|
Pixel parameter |
|||
|
Lamp encapsulation |
SMD1010 |
SMD1010 |
SMD2020 |
|
Pixel color |
SMD1R1G1B |
SMD1R1G1B |
SMD1R1G1B |
|
Pixel Pitch（mm） |
2.5mm |
3mm |
4mm |
|
Pixel Density（Pixel/m2） |
160000 |
111111 |
62500 |
|
LED Module Parameter |
|||
|
LED module resolution（W × H） |
64 ×64 |
64×64 |
64×32 |
|
LED module dimension（W/mm × H/mm） |
160mm ×160mm |
192mm ×192mm |
256mm ×128mm |
|
Main Parameters |
|||
|
LED Screen Dimension（W/mm × H/mm） |
960mm x 640mm |
1536mm x 960mm |
1536mm x 1024mm |
|
Resolution（W× H） |
384×256 |
512×320 |
384×256 |
|
System Parameters |
|||
|
Driving method |
Constant current 1/16 Scan |
Constant current 1/16 Scan |
Constant current 1/8 Scan |
|
Max Brightness（cd/m2） |
>1500 cd/m2 |
>1200 cd/m2 |
>1200 cd/m2 |
|
horizontal view angle |
120° |
120° |
120° |
|
vertical angle of view |
120° |
120° |
120° |
|
Minimum View Distance（m） |
>2m |
>3m |
>4m |
|
Peak Power consumption（W/m2） |
< 850W/m2 |
< 820W/m2 |
< 780W/m2 |
|
Average Power consumption（W/m2） |
< 380W/m2 |
< 350W/m2 |
< 300W/m2 |
|
Brightness homogeneity |
> 95% |
> 95% |
> 95% |
|
Visual refresh rate（Hz） |
≥ 2000Hz |
≥ 2000Hz |
≥ 2000Hz |
|
Product Module |
P2.5/I |
P3/I |
P4/I |
|
gray level |
12bit |
14bit |
|
|
Point by point correction |
Ex factory or on site point by point correction is all available |
Ex factory or on site point by point correction is all available |
|
|
Contrast ratio |
2000：1 |
2000：1 |
|
|
Brightness control |
256 levels automatic or manual adjustment |
256 levels |
|
|
Color Temperature |
3200 K ~ 93000 K |
3200 K ~ 93000 K |
|
|
LED Screen life span（h） |
≥ 50000 Hours |
≥ 50000 Hours |
|
|
Working temperature |
-20 ℃ ~ +50 ℃ |
||
|
Working humidity |
10% ~ 90% RH |
||
|
Working voltage |
AC 220 V ± 10% |
||
|
Protection Level |
IP31 |
||
|
Rotating LED Screen motion layer |
|||
|
Dynamical System |
actuating motor、PLC Control、Touch screen auto adjusting time、speed |
||
|
deceleration system |
planet-gear speed reducer |
||
|
Screen movement speed |
rated revolving speed：12r/min, max revolving speed：16r/min |
||
|
The gap between two LED screen |
≤5mm |
||
|
Video time difference between two LED screen |
≤0.2s |
||
|
Equipment Movement error |
≤0.5° |
||
|
LED screen rotating angles |
360° |
||
|
Rotating angle deviation |
＜2mm |
||
|
Screen body movement |
Revolving screen is controlled by broadcasting software, it match perfect with the video content. It can revolve required angles in required time. Each layer is independent, each layer circles around the center shaft which is vertical against the ground. The revolving speed and circles is not limited。 |
||
|
LED Screen assemble and installation Structure |
LED Screen consist of three layers of LED screens，LED modules are installed on the surface of rectangle. Three layers form into a triangular prism unit covered with LED. |
||
|
Motor rated voltage |
380V |
||
|
Motor Capacity |
≥1Kw |
||

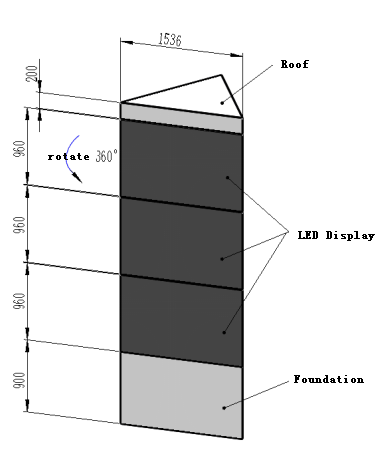

2、Product structure diagram
