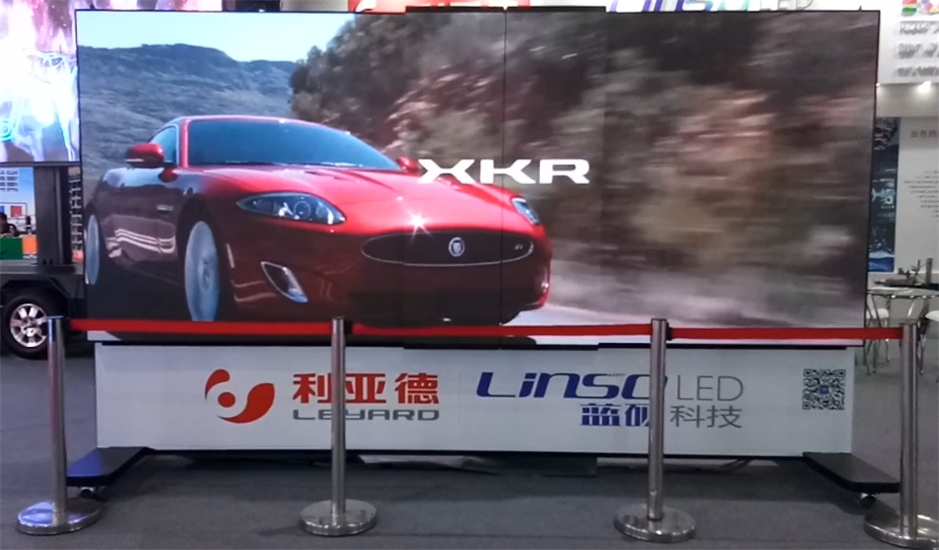

LS03 S LR Series----Indoor Horizontal Sliding Full Color LED Display
-
Sliding Screen -
Horizontal Sliding Screen
LS03 S L&R Series----Indoor Horizontal Sliding Full Color LED Display
1. Technical Parameters
|
Product model |
P2.5/I |
|
|
Application field |
Indoor |
|
|
Pixel Parameter |
||
|
Lamp encapsulation |
SMD1010 |
|
|
Pixel |
SMD1R1G1B |
|
|
Pixel Pitch（mm） |
2.5mm |
|
|
Pixel Density（Pixel/m2） |
160000 |
|
|
Module Parameters |
||
|
LED module resolution（W × H） |
64 ×64 |
|
|
LED module dimension（W/mm × H/mm） |
160mm ×160mm |
|
|
Screen Parameters |
||
|
LED Screen Dimension（W/mm × H/mm） |
Main Screen 3840mm x 1600mm Subsidiary Screen 480mm x1600mm x2 |
|
|
Resolution（W× H） |
1536×640 192×640 |
|
|
System Parameters |
||
|
Driving method |
Constant current 1/16 Scan |
|
|
Max Brightness（cd/m2） |
>1500 cd/m2 |
|
|
horizontal view angle |
120° |
|
|
vertical angle of view |
120° |
|
|
Minimum View Distance（m） |
>2m |
|
|
Peak Power（W/m2） |
< 850W/m2 |
|
|
Average Power consumption（W/m2） |
< 380W/m2 |
|
|
Brightness homogeneity |
> 95% |
|
|
Visual refresh rate（Hz） |
≥ 2000Hz |
|
|
Product Model |
P2.5/I |
|
|
gray level |
12bit |
|
|
Point by point correction |
Ex factory or on site point by point correction is all available |
|
|
Contrast ratio |
2000：1 |
|
|
Brightness control |
256 levels automatic or manual adjustment |
|
|
Color Temperature |
3200 K ~ 93000 K |
|
|
LED Screen life span（h） |
≥ 50000 Hours |
|
|
Working temperature |
-20 ℃ ~ +50 ℃ |
|
|
Working humidity |
10% ~ 90% RH |
|
|
Working voltage |
AC 220 V ± 10% |
|
|
Protection Level |
IP31 |
|
|
Horizontal Sliding LED Screen motion layer |
||
|
Dynamical System |
actuating motor、PLC Control、Touch screen auto adjusting time、speed |
|
|
deceleration system |
planet-gear speed reducer |
|
|
Sliding Screen movement speed |
rated revolving speed：500mm/sec,Max revolving speed：600mm/sec |
|
|
The gap between two LED screen |
≤10mm |
|
|
Video time different between two LED screen |
≤0.2s |
|
|
Equipment Movement error |
≤0.5° |
|
|
Sliding screen displacement distance |
LED Backdrop screen can be any depth（No limits） |
|
|
Front/rear screen angular deviation |
＜0.1mm |
|
|
Screen body movement |
Sliding screen is controlled by broadcasting software，it can match the rear side screen’s advertising content, and it can move according to the setting time. |
|
|
LED Screen assemble and installation Structure |
LED Screen consist of two layers of LED screens，The bigger LED screen is fixed, the smaller LED screen is moving in front of the bigger LED screen.LED modules are installed on the two rectangular faces of LED screen. |
|
|
Motor rated voltage |
220V |
|
|
Motor Capacity |
≥750w*2 |
|

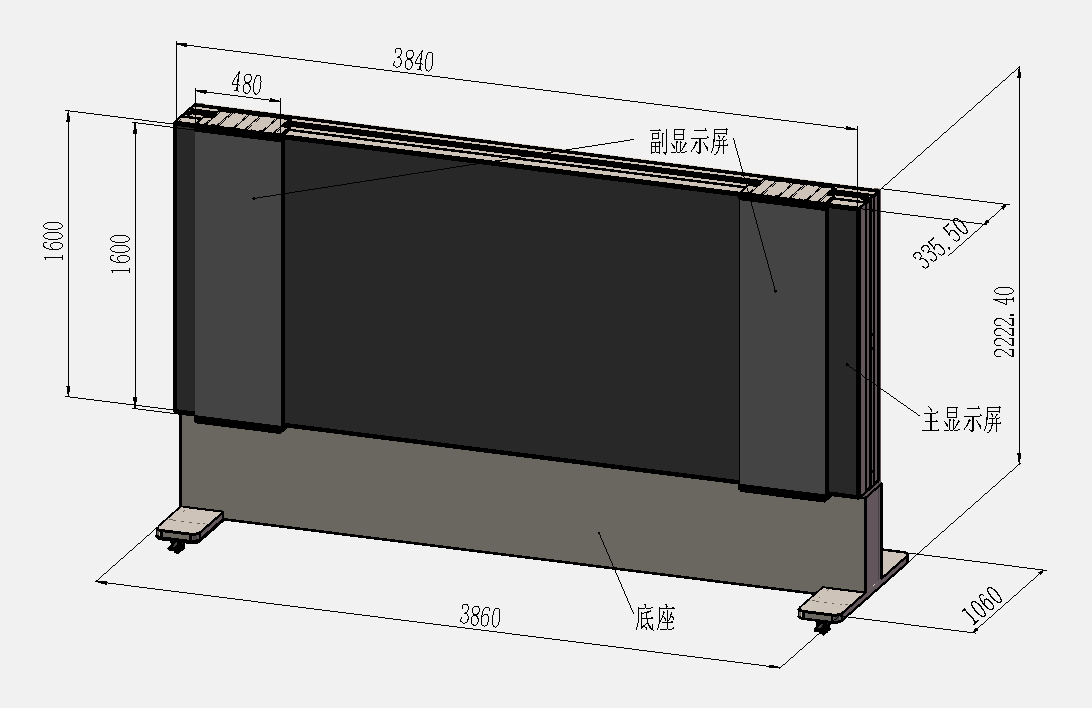

2. Product structure diagram
