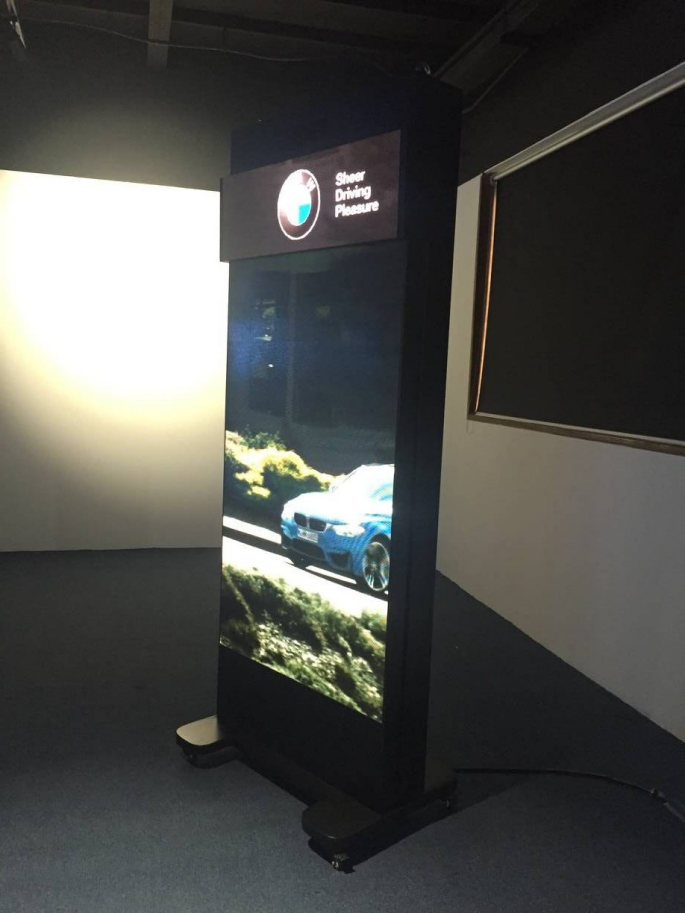

LS03 S UD series----indoor slide up and down full color LED Display
-
Static screen -
Slide up screen
LS03 S U&D series----indoor slide up and down full color LED Display
1、 Specification
|
Indoor full color LED Display |
||
|
Product model |
P2.5/I |
|
|
Application field |
Indoor |
|
|
Pixel parameter |
||
|
Lamp encapsulation |
SMD1010 |
|
|
Pixel color |
SMD1R1G1B |
|
|
Pixel Pitch（mm） |
2.5mm |
|
|
Pixel Density（Pixel/m2） |
160000 |
|
|
LED Module Parameter |
||
|
LED module resolution（W × H） |
64 ×64 |
|
|
LED module dimension（W/mm × H/mm） |
160mm ×160mm |
|
|
Main Parameters |
||
|
LED Screen Dimension（W/mm × H/mm） |
Main Screen 960mm x 1920mm Subsidiary Screen 960mm x320mm |
|
|
Resolution（W× H） |
384×768 384×128 |
|
|
System Parameters |
||
|
Driving method |
Constant current 1/16 Scan |
|
|
Max Brightness（cd/m2） |
>1500 cd/m2 |
|
|
horizontal view angle |
120° |
|
|
vertical angle of view |
120° |
|
|
Minimum View Distance（m） |
>2m |
|
|
Peak Power（W/m2） |
< 850W/m2 |
|
|
Average Power consumption（W/m2） |
< 380W/m2 |
|
|
Brightness homogeneity |
> 95% |
|
|
Visual refresh rate（Hz） |
≥ 2000Hz |
|
|
Product Module |
P2.5/I |
|
|
gray level |
12bit |
|
|
Point by point correction |
Ex factory or on site point by point correction is all available |
|
|
Contrast ratio |
2000：1 |
|
|
Brightness control |
256 levels automatic or manual adjustment |
|
|
Color Temperature |
3200 K ~ 93000 K |
|
|
LED Screen life span（h） |
≥ 50000 Hours |
|
|
Working temperature |
-20 ℃ ~ +50 ℃ |
|
|
Working humidity |
10% ~ 90% RH |
|
|
Working voltage |
AC 220 V ± 10% |
|
|
Protection Level |
IP31 |
|
|
slide up and down LED Screen motion layer |
||
|
Dynamical System |
actuating motor、PLC Control、Touch screen auto adjusting time、speed |
|
|
deceleration system |
planet-gear speed reducer |
|
|
Sliding Screen movement speed |
rated revolving speed：500mm/sec,Max revolving speed：600mm/sec |
|
|
The gap between two LED screen |
≤10mm |
|
|
Video time difference between two LED screen |
≤0.2s |
|
|
Equipment Movement error |
≤0.5° |
|
|
Sliding screen displacement distance |
LED Backdrop screen can be any depth（No limits） |
|
|
Front/rear screen angular deviation |
＜0.1mm |
|
|
Screen body movement |
Sliding screen is controlled by broadcasting software，it can match the rear side screen’s advertising content, and it can move according to the setting time. |
|
|
LED Screen assemble and installation Structure |
LED Screen consist of two layers of LED screens, The bigger LED screen is fixed, the smaller LED screen is moving in front of the bigger LED screen.LED modules are installed on the two rectangular faces of LED screen. |
|
|
Motor rated voltage |
220V |
|
|
Motor Capacity |
≥750 W |
|

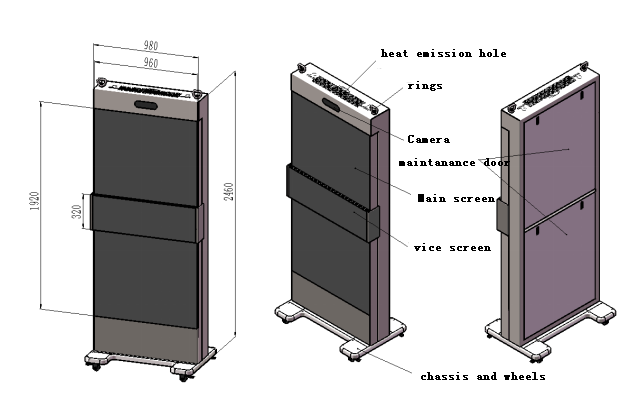

2、Product structure diagram
