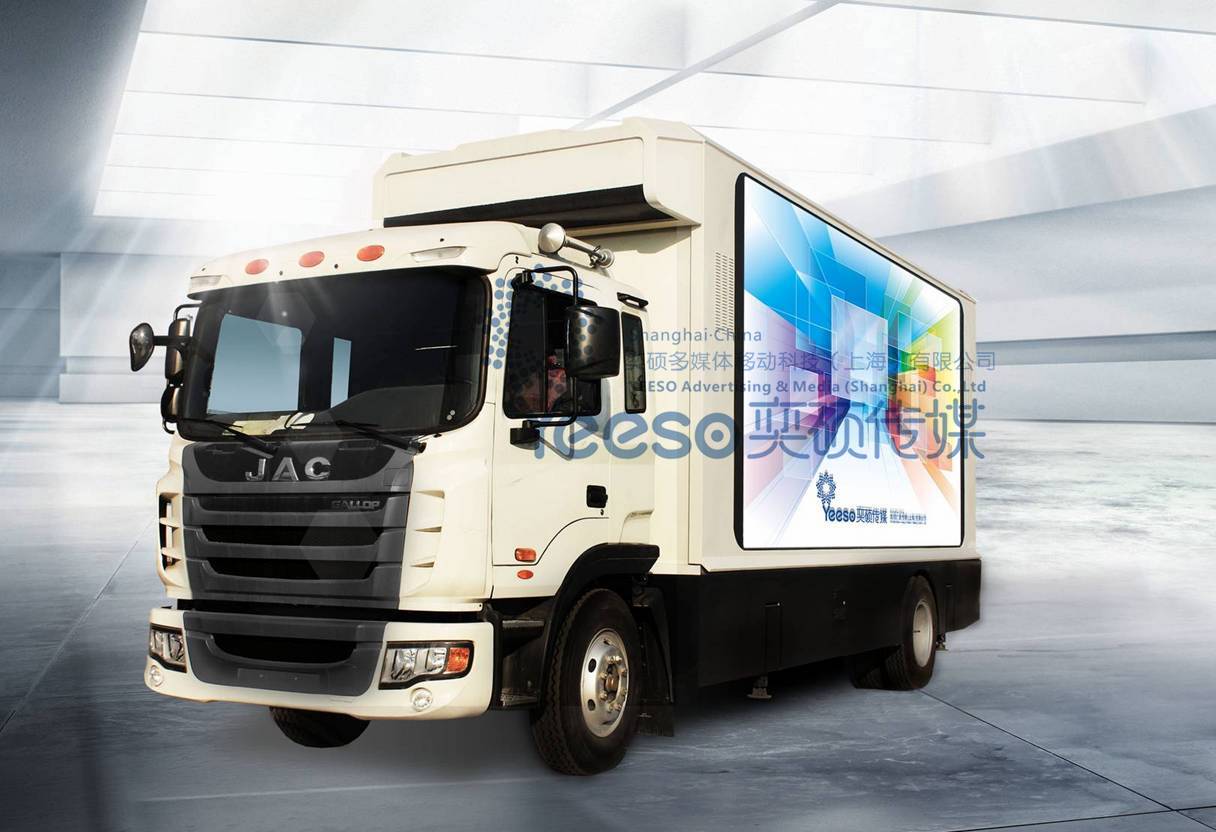

LED Advertising Truck YES-V9

Product number::YES-V9

  • LED advertising Truck YES-V9
    LED advertising Truck YES-V9
  • LED advertising Truck YES-V9
    LED advertising Truck YES-V9
  • LED advertising Truck YES-V9
    LED advertising Truck YES-V9
  • LED advertising Truck YES-V9
    LED advertising Truck YES-V9
  • LED advertising Truck YES-V9
    LED advertising Truck YES-V9
  • LED advertising Truck YES-V9
  • LED advertising Truck YES-V9
  • LED advertising Truck YES-V9
  • LED advertising Truck YES-V9
  • LED advertising Truck YES-V9

◎ It use JAC Chassis, can load huge weight

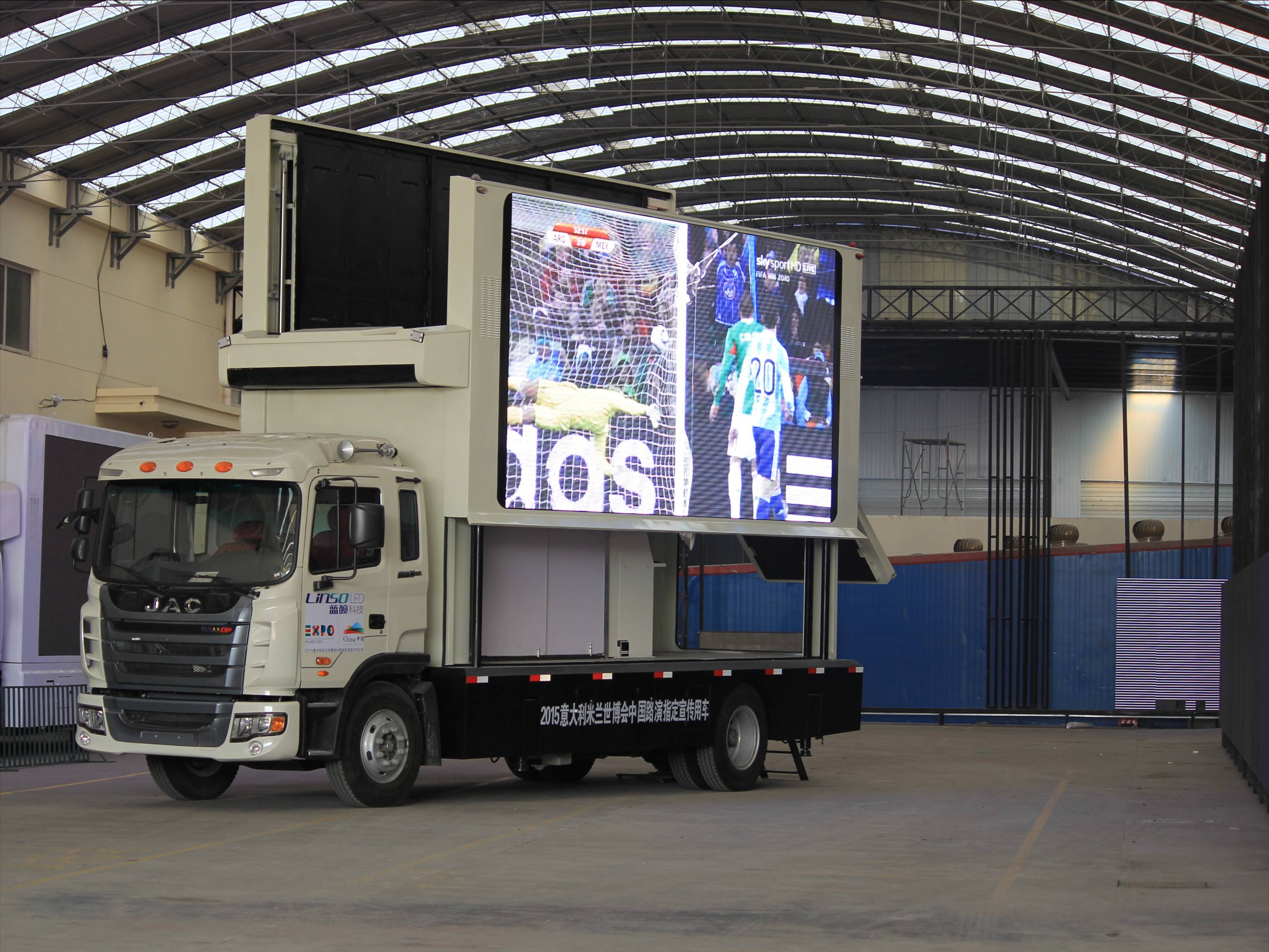

◎ 15 Sqm LED screen mounted on big truck

◎ Unique Patented Design, with beautiful shape

◎ 2015 Milan Expo appointed Advertising truck

    Model:JAC K series  Dispalcement:4.8L

    YES-V9 LED truck use JAC geir hair truck chassis as the carrier. The external dimension is 9010mm*2495mm*3925mm. Its wheelbase is 5300mm. It can also meet the national IV emission standards. The cabin will streamlined mask, honeycomb shape front grille, modular crystal shaped headlamps , together with large-scale three-dimensional "Dongfeng" logos, it will leave a deep impression for clients. The driving room has pacious and comfortable driving space, and humanized interior design, as well as high security level. The truck body apply aerodynamic design, it has the features of drag coefficient, low noise and high speed, comfort driving. The truck body applies flow lines and prominent front design curves to enhance the three-dimensional visual perception. The cab use four-point cab suspension and air bag to increase shock absorption. It is very safe and stable to drive on road.

    YES-V9 LED truck is equipped with outdoor full color LED screen. Its size is around 14 sqm. Its the biggest size mounted screen option available in advertising truck market.

    YESSO have a LED screen production line specially arranged for LED vehicles. We choose high brightness LED chip and fine raw material to build the LED screen. We apply high refresh rate technology to keep the LED screen have a smooth picture. YEESO have years of accumulated experience and advanced technology to improve our cabinet design, connector design, waterproof and shockproof design. We can make sure that the quality of our LED display to be the best.

   Electric SystemYEESO designed a vehicle-specific 16KW pole ultra-quiet generators. It has the features of low noise, low fuel consumption, light weight, easy to start and reliable to run.It has many advantages in its wink intake and output capacity, automotive shock-proof design, noise reduction and heat dissipation. For other major electrical components, we use Omron or Schneider brand. The whole vehicle has passed through the EU certification, it is completely compliant with EU safety standards.

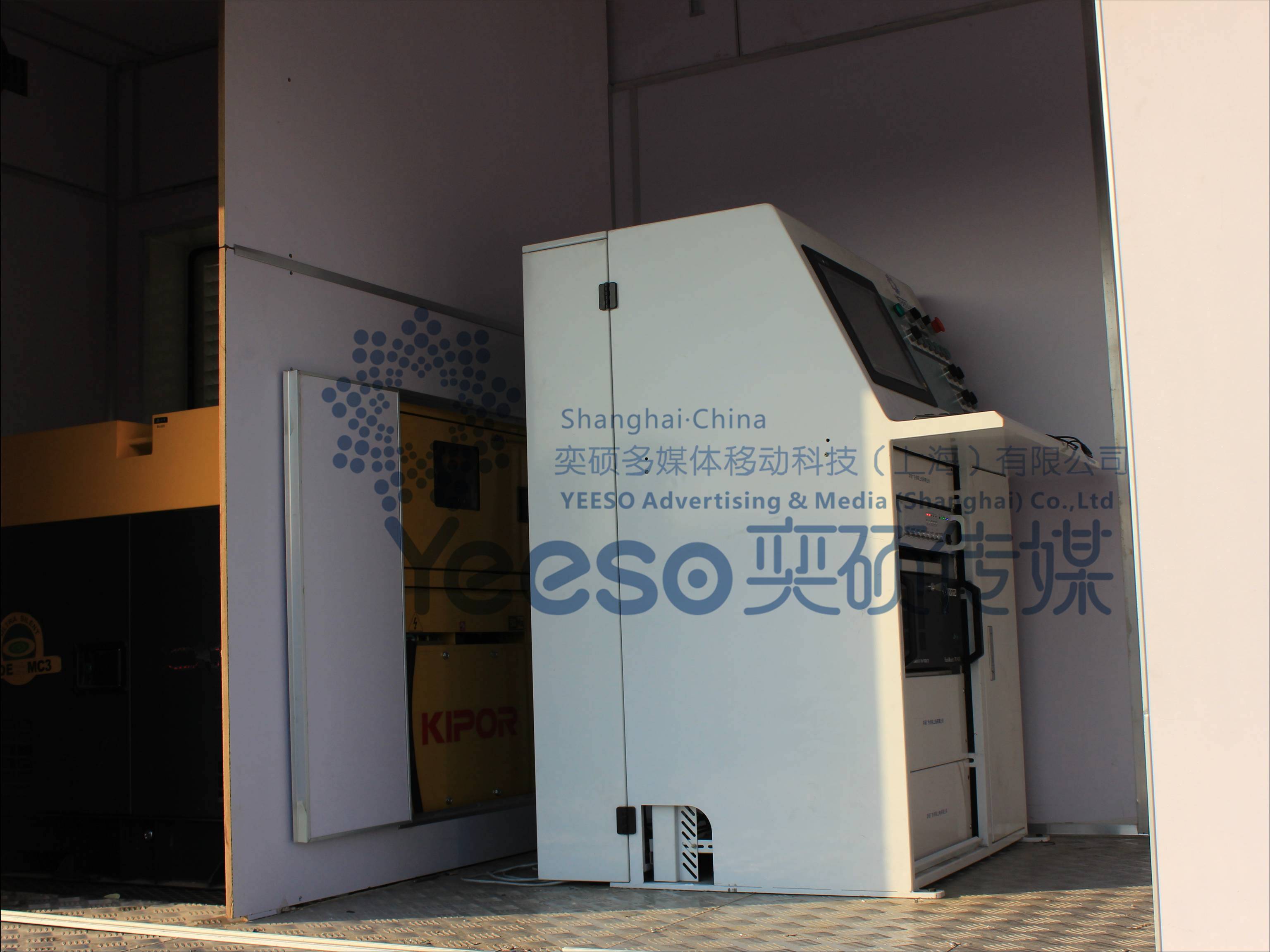

  Multimedia devicesYEESO control panel cabinet has combined the vehicle-specific industrial computers, embedded car LCD monitors, high-power amplifier, speakers and so on. All the power, screen lifting system, hydraulic stage flexing system can be controlled by center control. It is very easy to use.

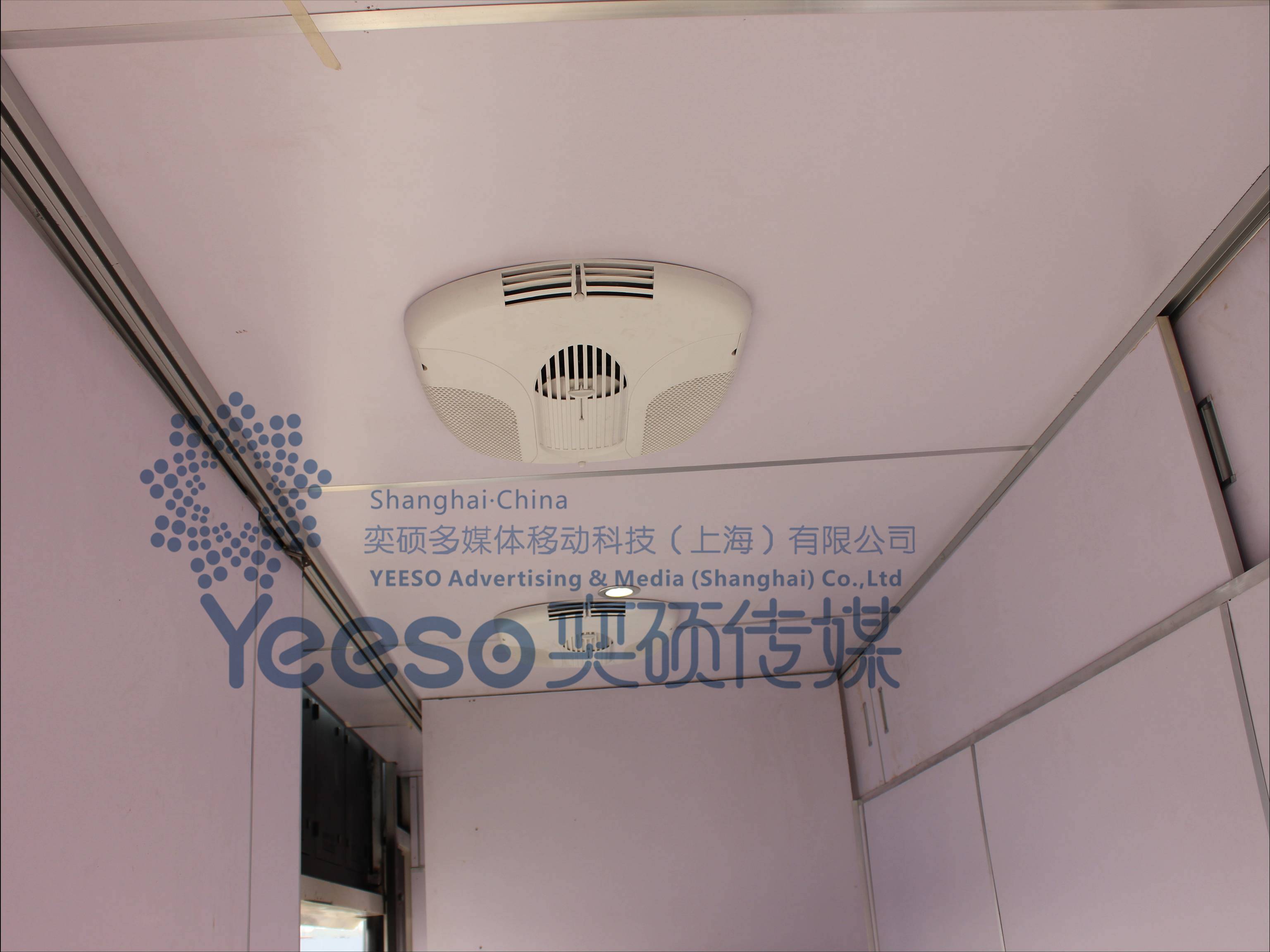

    YEESO truck series has a large interior space. We stick to elegant inner decoration and cozy environment. We use white light aluminum panels and apply gluing process between gaps. At the top of the interior room, we install LED Lamps. We install built-in air-conditioner, and apply a flap leather floor on the stage surface; We improve the heat dissipation to create a good working environment.

Tech Parameter of YES-V9 LED Stage Truck
Chassis parameter
Chassis  JAC Emission standard Natuinal IV standard
External dimension 9010mm×2495mm×3925mm Total weight 12280kg
Wheelbase 5300mm curb weight 10800kg
generator power 4.8L/112KW Passenger number 3 people
Outdoor LED display(left side)
LED screen dimension 5440mm×2560mm Pixel 8mm
LED chip R、G、B: Epistar
Model size 320mm(W)×320mm(H)
Brightness ≥6500cd
max power 1000W/㎡
average power 500W/㎡ life span 100000H
Scrolling light box
light box size 2100mm×1580mm×2 sets Roller diameter 100mm
motor power ≥80W control mode smart control
Light source LED lighting printing papers 6~8 pieces
Single red color LED screen and rear side LED screen
LED bar dimension 6080mm×480mm Rear screen dimension 1280mm×1920mm
Pixel 10mm
LED chip red:Epistar
Model size 160mm(W)×160mm(H)

Screen lifting system
Lifting system German Electric putt lifting system Lifting height 2000mm
Hydraulic supporting legs Four supporting legs,lift up by 300mm,Each can support 3T

Super quite generator
Brand YEESO external dimension 1540mm×780mm×1070mm
Power 16KW power super quiet
gasoline type diesal cylinder numbers four cylinder, water colling
Displacement 4.33L Cylinder x stroke 114mm×120mm
External power source
Voltage input 380V Voltage output 220V
current 50A power comsuption average power comsuption 0.5wh/㎡
Multimedia control system
Industrial computer Processor: Core Duo CPU, graphics card: 1G, hard disk: 500G, optical drives: DVD, Memory: 2G Monitor 15 inch LCD
power amplifier 200W Speakers 200W
control system LINSN/YEESO point by point correction technolege

External frame structure and interier decoration
surface paint white interior decoration fire proof board
Axlebox sheet metal weilding Water proof process whole vihicle glues pouring
air conditioner imported hanging type air-conditioner

Fitting selections

1.LED screen resolution(P10、P8、P6)

2.surface color painting(according to client's request)

3.Double sides LED screen or Triple sides LED screen.

4.Hydraulic stage、fence、pedal、ladder processor

6,asynchronous control system
