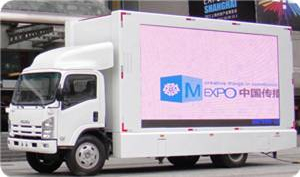

LED Screen Truck YES-V8
◎ It use ISUZU Chassis, can load huge weight
◎ 13 Sqm LED screen mounted on big truck
◎ Unique Patented Design, with beautiful shape
◎ Have been exported to lots of countries, such as Australia, Nigeria, UAE, etc.
Model：ISUZU 700P displacement/power：5.139L/139KW
YES-V8-type LED advertising vehicles choose ISUZU 700P Series trucks as the vehicle chassis. The chassis use the world's leading Isuzu 4HK1-TCG40 country Ⅳ engine and it applied Denso High Pressure Common Rail system. The engine can produce stable fuel injection pressure when the generator is rotating in either low speed or high speed. It has better fuel atomization.
The engine has the feature of strong power, low noise, low fuel consumption, reliable durability and other characteristics. The body is the latest popular style, it has the user-friendly interior design. It has powerful steering and it is easy to operate. The large cockpit have big flip angle, itis easy to maintain.
YES-V8 LED truck is equipped with outdoor full color LED screen. Its size is around 13 sqm. Its the biggest size mounted screen option available in advertising truck market.
YESSO have a LED screen production line specially arranged for LED vehicles. We choose high brightness LED chip and fine raw material to build the LED screen. We apply high refresh rate technology to keep the LED screen have a smooth picture. YEESO have years of accumulated experience and advanced technology to improve our cabinet design, connector design, waterproof and shockproof design. We can make sure that the quality of our LED display to be the best.
Electric System：YEESO designed a vehicle-specific 16KW pole ultra-quiet generators. It has the features of low noise, low fuel consumption, light weight, easy to start and reliable to run.It has many advantages in its wink intake and output capacity, automotive shock-proof design, noise reduction and heat dissipation. For other major electrical components, we use Omron or Schneider brand. The whole vehicle has passed through the EU certification, it is completely compliant with EU safety standards.

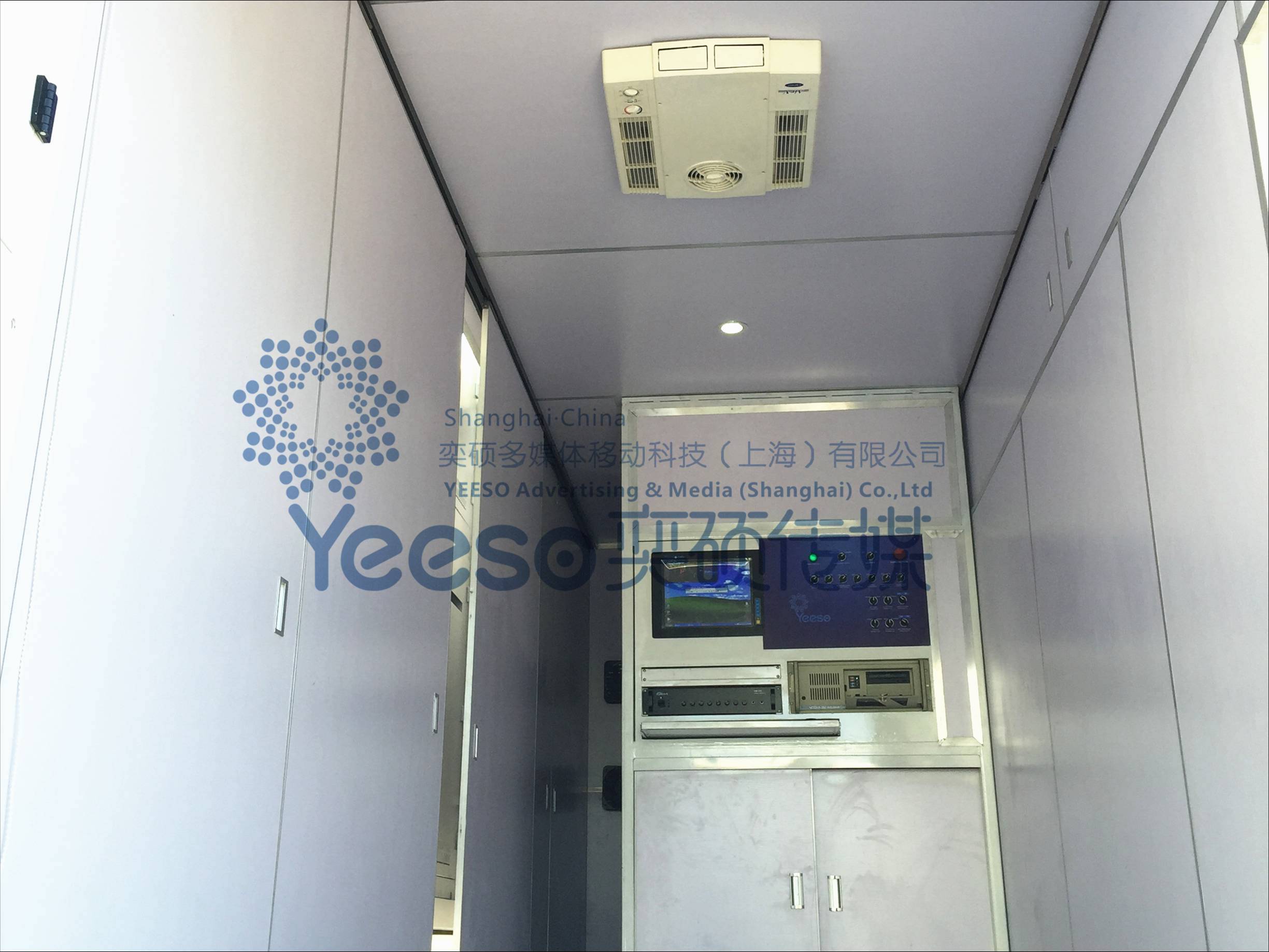

Multimedia devices：YEESO control panel cabinet has combined the vehicle-specific industrial computers, embedded car LCD monitors, high-power amplifier, speakers and so on. All the power, screen lifting system, hydraulic stage flexing system can be controlled by center control. It is very easy to use.
YEESO truck series has a large interior space. We stick to elegant inner decoration and cozy environment. We use white light aluminum panels and apply gluing process between gaps. At the top of the interior room, we install LED Lamps. We install built-in air-conditioner, and apply a flap leather floor on the stage surface; We improve the heat dissipation to create a good working environment.
|Tech Parameter of YES-V8 LED Stage Truck|
|Chassis brand||ISUZU||Emission level||National IV standard|
|External dimension||7935mm×2300mm×3895mm||Total Weight||10000kg|
|Generator power||5.193L/139KW||passenger number||3 people|
|Mounted LED screen（left side）|
|LED screen size||4800mm×2400mm||pixel||8mm|
||LED module dimension||320mm（W）×320mm（H）|
|Average power comsuption||500W/㎡||life span||100000H|
|Scrolling Light Box|
|light box dimension||3900mm×1500mm||roller diameter||100mm|
|motor power||≥80W||control system||smart control|
|light source||LED lamp||loading prints||6~8 papers|

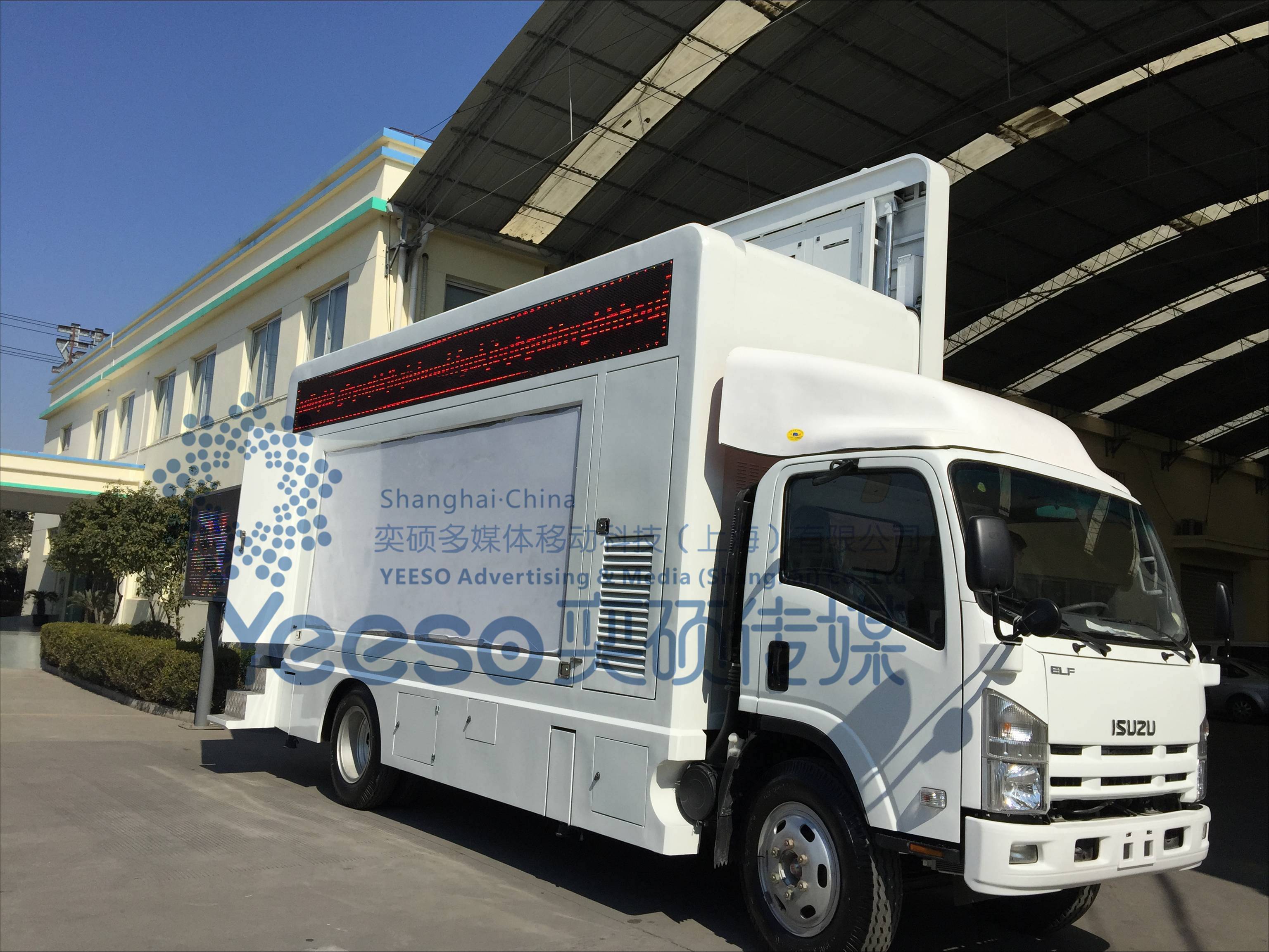

|Single red color LED bar screen and LED rear side screen|
|LED bar dimension||5440mm×480mm||rear side dimension||1280mm×1920mm|
|Screen hydraulic lifting system|
|hydraulic system||german technologe electric putt||Lifting height||2000mm|
|Hydraulic supporting system||four supporting legs，lift up 300mm，each support 3T||
|Super quiet generator|
|gasoline type||diesal||cylinder number||four cylinders, water cooling|
|External power source|
|input voltage||380V||voltage output||220V|
|current||50A||power||average power comsumption: 0.5wh/㎡|
|Multimedia control system|
|Industrial computer||Processor: Core Duo CPU, graphics card: 1G, hard disk: 500G, optical drives: DVD, Memory: 2G||Monitor||15 inch LCD monitor|
|Control system||LINSN/YEESO point by point correcting system||
|External frame sturcture and interior decoration|
|surface glue||white||interiar decoration||fire proof board|
|axle box||metal plate welding||water proof processing||whole truck glue pouring|
|vehicle air-conditioner||imported hanging type air-conditioner||
1.LED screen resolution（P10、P8、P6）
2.surface color painting（according to client's request）
3.Double sides LED screen or Triple sides LED screen.
6,asynchronous control system
