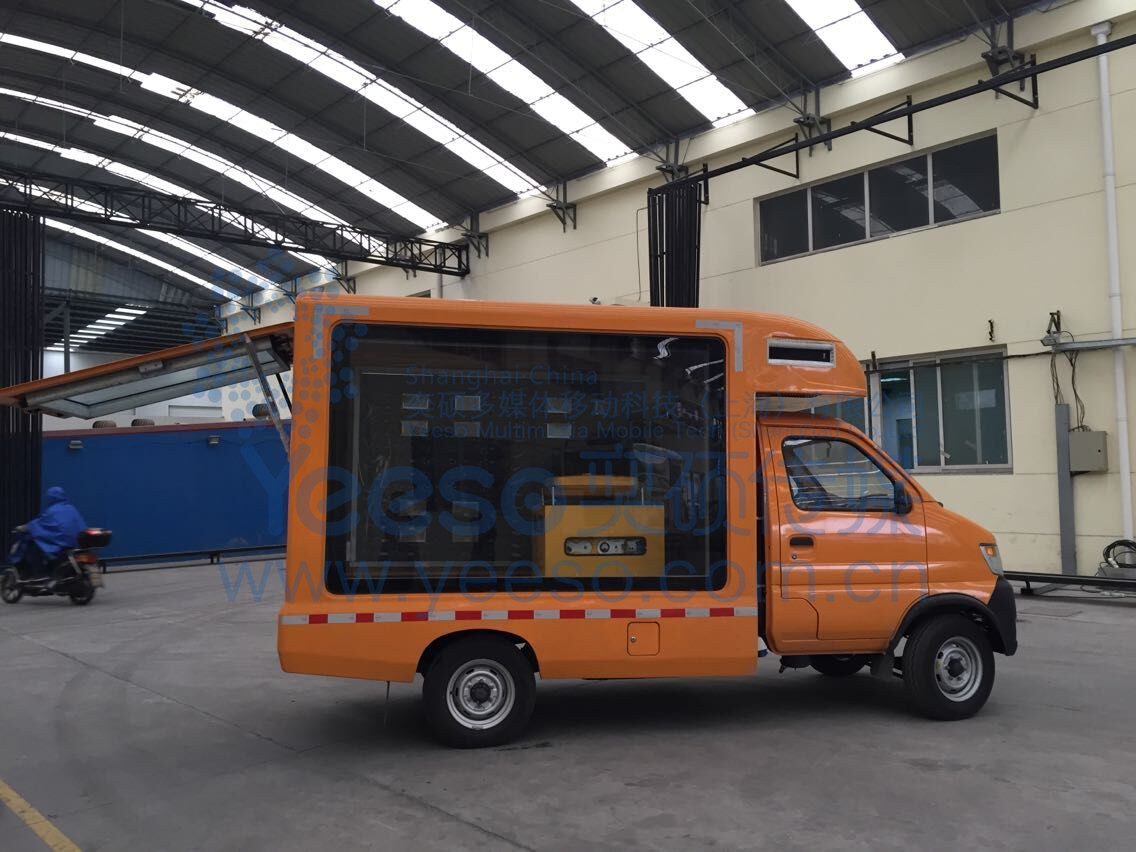

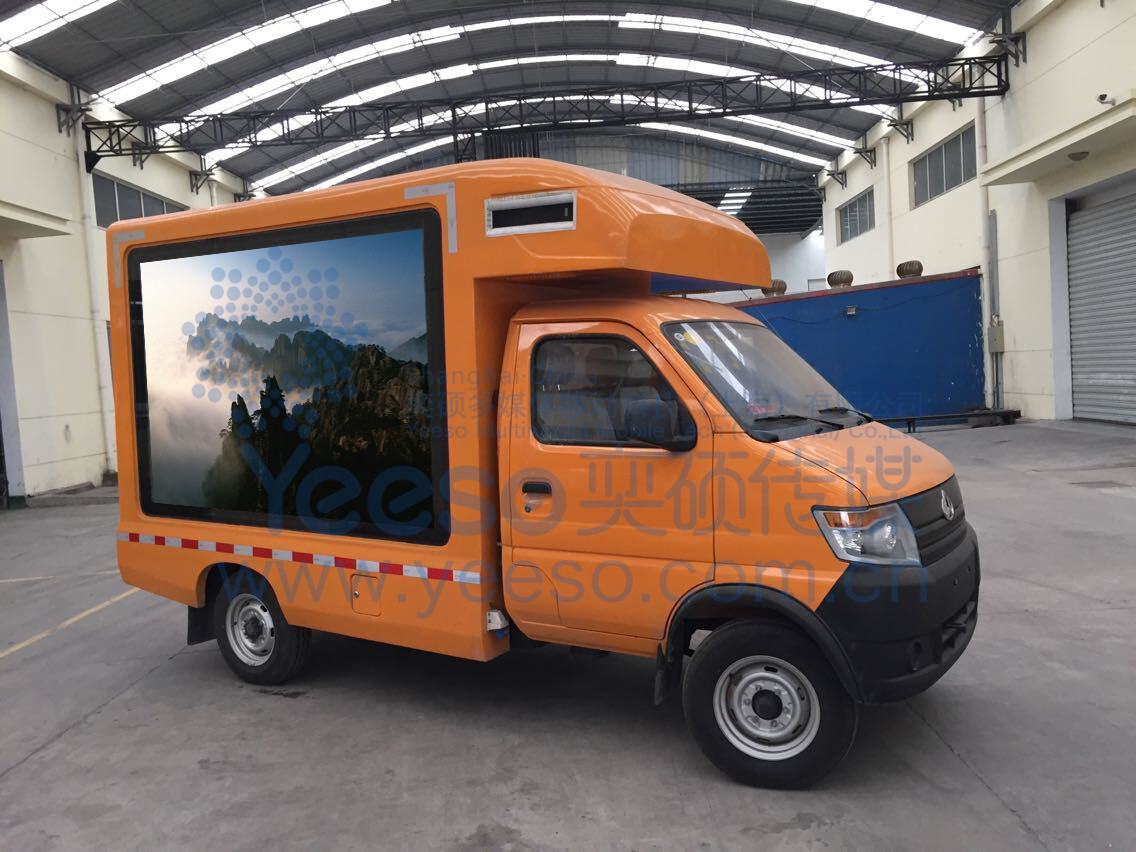

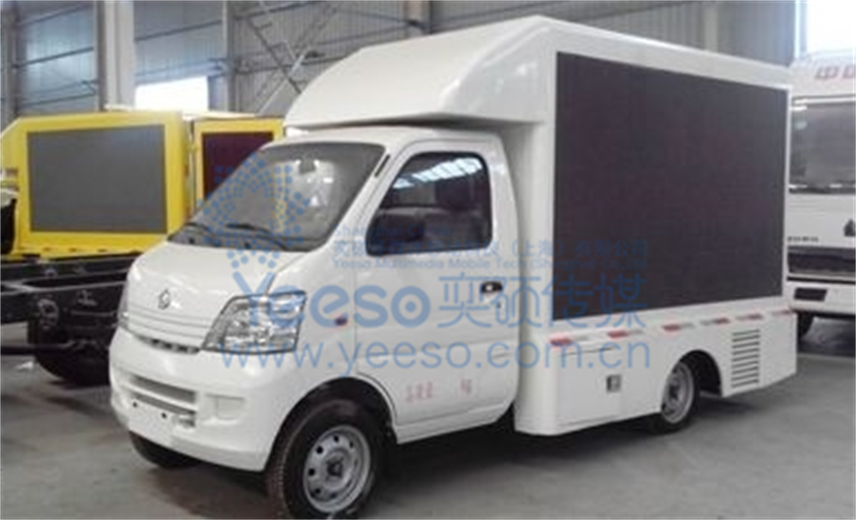

Mini LED Display Truck YES-V5
◎ It use Changan Chassis, its price is very competitive
◎ 3 Sqm LED screen mounted on big truck
◎ Unique Patented Design, with beautiful shape
◎ It is very light and flexible, can be widely applied on street.
YES-V6 LED truck use Changan as the carrier. It can also meet the national II emission standards. The cabin will streamlined mask, honeycomb shape front grille, modular crystal shaped headlamps. The driving room has pacious and comfortable driving space, and humanized interior design, as well as high security level. The truck has the features of drag coefficient, low noise and high speed, comfort driving. The truck body applies flow lines and prominent front design curves to enhance the three-dimensional visual perception. The cab use four-point cab suspension and air bag to increase shock absorption. It is very safe and stable to drive on road.

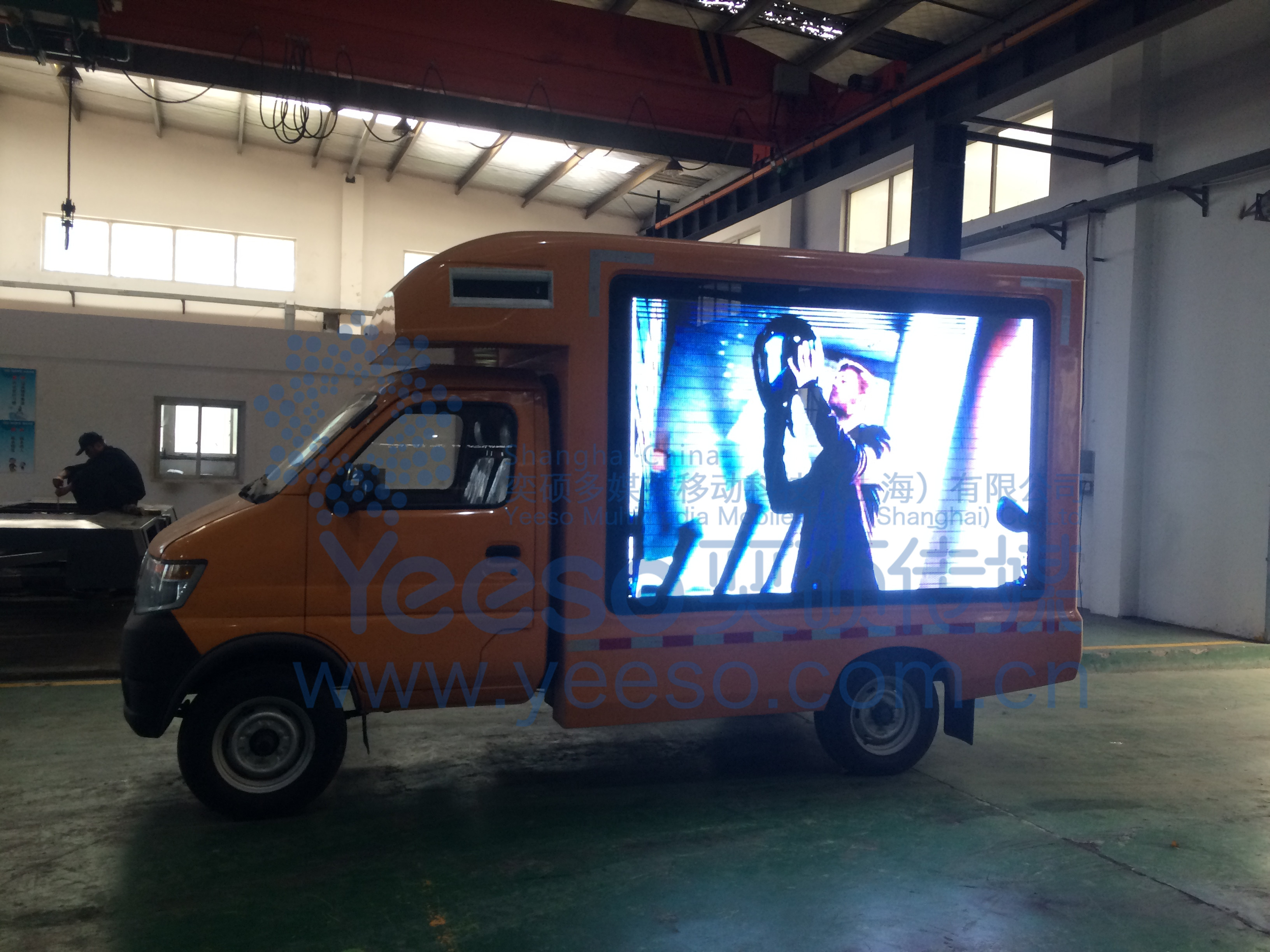

YES-V5 LED truck is equipped with outdoor full color LED screen. Its size is around 3 sqm..
YESSO have a LED screen production line specially arranged for LED vehicles. We choose high brightness LED chip and fine raw material to build the LED screen. We apply high refresh rate technology to keep the LED screen have a smooth picture. YEESO have years of accumulated experience and advanced technology to improve our cabinet design, connector design, waterproof and shockproof design. We can make sure that the quality of our LED display to be the best.
Electric System：YEESO designed a vehicle-specific 5KW pole ultra-quiet generators. It has the features of low noise, low fuel consumption, light weight, easy to start and reliable to run.It has many advantages in its wink intake and output capacity, automotive shock-proof design, noise reduction and heat dissipation. For other major electrical components, we use Omron or Schneider brand. The whole vehicle has passed through the EU certification, it is completely compliant with EU safety standards.
Multimedia devices：YEESO control panel cabinet has combined the vehicle-specific industrial computers, embedded car LCD monitors, high-power amplifier, speakers and so on. All the power, screen lifting system, hydraulic stage flexing system can be controlled by center control. It is very easy to use.
|Tech Parameter of YES-V5 LED Stage Truck|
|Chassis brand||Changan||Emission level||National II standard|
|Generator power||1.5L/39KW||passenger number||2 people|
|Mounted LED screen（left side）|
|LED screen size||2080mm*1600mm||pixel||6mm|
||LED module dimension||320mm（W）×160mm（H）|
|Average power comsuption||500W/㎡||life span||100000H|
|Scrolling Light Box|
|light box dimension||2080mm*1600mm||roller diameter||100mm|
|motor power||≥80W||control system||smart control|
|light source||LED lamp||loading prints||3~5 papers|
|Rear side light box|
|rear side dimension||1250mm×1150mm||Light box type||LED light bar|
|Super quiet generator|
|gasoline type||diesal||cylinder number||three cylinders, water cooling|
|External power source|
|Multimedia control system|
|Control system||LINSN/YEESO point by point correcting system||
|External frame sturcture and interior decoration|
|surface glue||white||interiar decoration||fire proof board|
|axle box||metal plate welding||water proof processing||whole truck glue pouring|
1.LED screen resolution（P10、P8、P6）
2.surface color painting（according to client's request）
3.Double sides LED screen or Triple sides LED screen.
4.video processor, air-conditioner
5,asynchronous control system
