Customized Multi-Function Truck Transformer-Megatron
◎ It use 9.6 meters long East wind sky dragon chassis, very strong to hit the road.
◎ It has lots of functions such as movie broadcast, stage performance, exhibits display and interactive experience.
◎ Automatic hydraulic design，can be easily set up and designed into a brand exhibition area.
◎ Customized features, can be designed as mobile food truck, mobile casino, mobile office, musical truck, mobile amusement vehicle, tourist truck, limo, etc.
◎ Fantastic Lizard Shape truck body and truck head which made of fiber glass.
◎ Good interior design and humanization equipments which make it become a cozy room.
Model: Dongfeng Displacement / Power: 6L / 162kw
Transformer-Megatron truck use Dongfeng Tianlong truck chassis as the carrier, with a 220 horsepower Cummins ISB series high pressure common rail diesel engine, its power is very strong. It can also meet the national IV emission standards. The cabin will streamlined mask, honeycomb shape front grille, modular crystal shaped headlamps , together with large-scale three-dimensional "Dongfeng" logos, it will leave a deep impression for clients. The driving room has pacious and comfortable driving space, and humanized interior design, as well as high security level.
Transformer-Megatron truck is equipped with outdoor full color LED screen. Its size is around 7.4 sqm. Its size can be customized according to client's requirement. The LED screen have slideable door plank. You can close the plank to protect the LED screen when your event is finished.
YESSO have a LED screen production line specially arranged for LED vehicles. We choose high brightness LED chip and fine raw material to build the LED screen. We apply high refresh rate technology to keep the LED screen have a smooth picture. YEESO have years of accumulated experience and advanced technology to improve our cabinet design, connector design, waterproof and shockproof design. The LED can also interact with people by applying special software. The brightness, content of the video , volumn of sound can be changed by cellphone. We can make sure that the quality of our LED display to be the best.
Transformer-Megatron truck is equiped with 7㎡ automatic hydraulic stage to facilitate a variety of stage performances such as product demonstrations and other activities. Inside the stage, we use 20mm crack waterproof bamboo plywood, we use leather surface stage floor and hydraulic supporting legs. Our stage has a high tolerance stage frame structure, the stage plate can bear the weight per square meter up to 200KG, exceeds the strength of iron, so as to ensure the safety of personnel.
The hydraulic stage have two control system: manual control and wireless control. Remote operation is simple and convenient. The stage can be easily set up in a short time. Stage has a fence and a step-ladder. Around the Stage we have extented panels as an extension of the exhibition space.
Electric System：YEESO designed a vehicle-specific 16KW pole ultra-quiet generators. It has the features of low noise, low fuel consumption, light weight, easy to start and reliable to run.It has many advantages in its wink intake and output capacity, automotive shock-proof design, noise reduction and heat dissipation. For other major electrical components, we use Omron or Schneider brand. The whole vehicle has passed through the EU certification, it is completely compliant with EU safety standards.
Multimedia devices：YEESO control panel cabinet has combined the vehicle-specific industrial computers, embedded car LCD monitors, high-power amplifier, speakers and so on. All the power, screen lifting system, hydraulic stage flexing system can be controlled by center control. It is very easy to use.

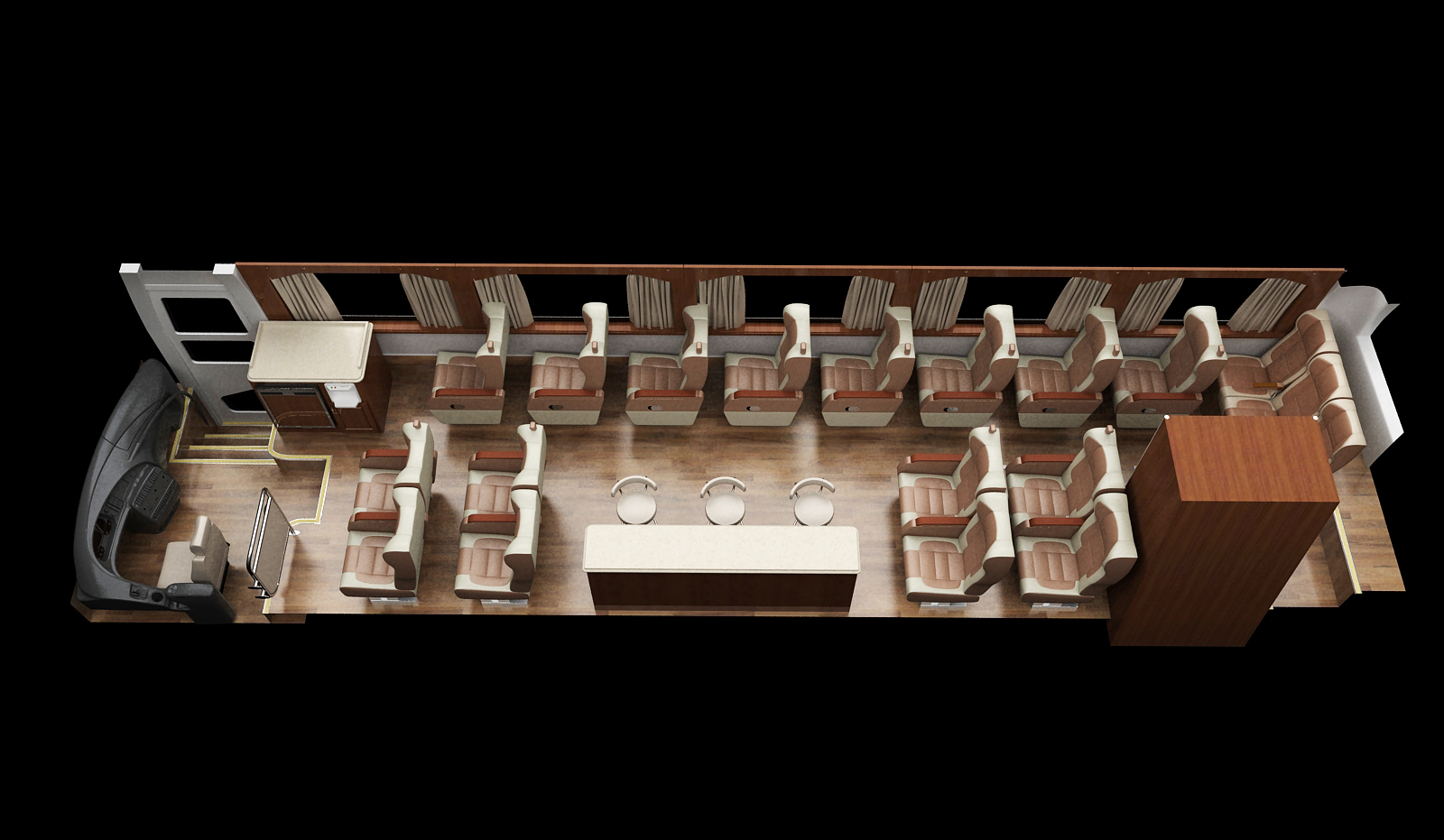

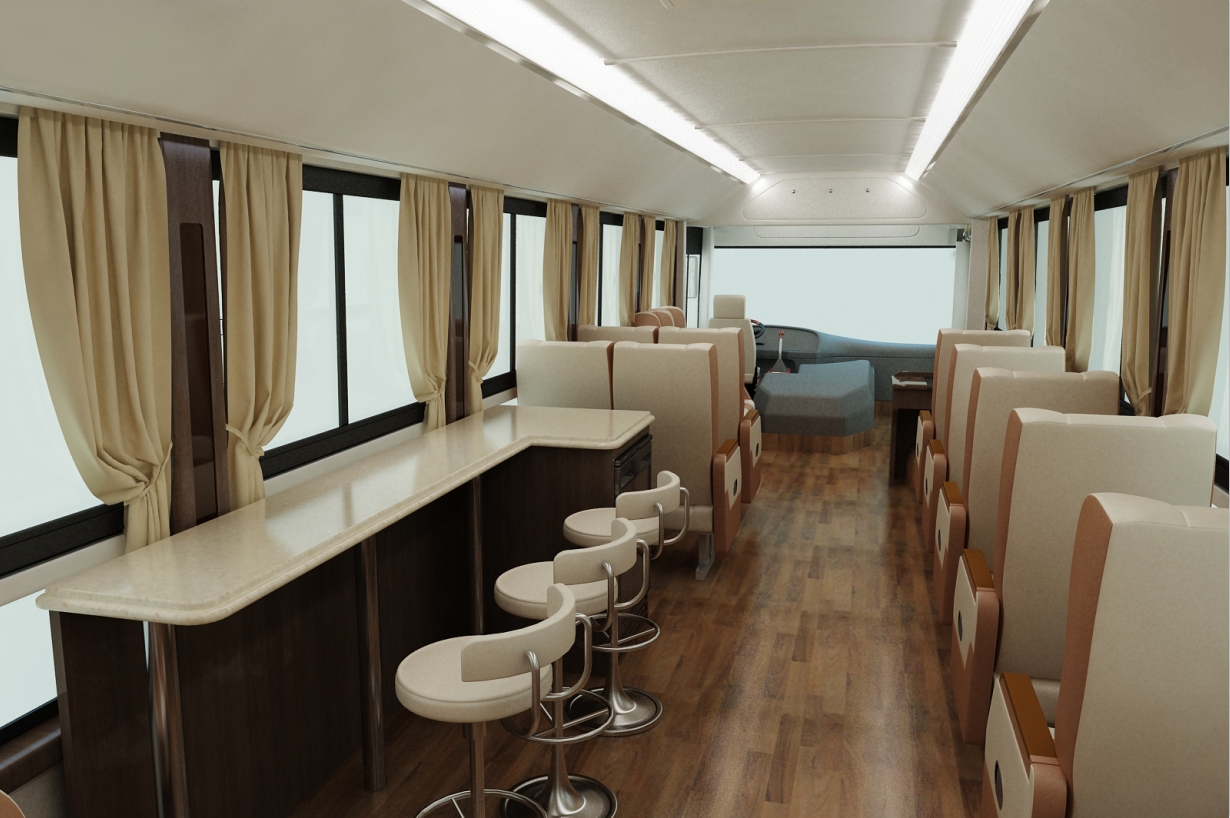

Transformer-Megatron truck has a large interior space around 9000mm×2000mm×2200mm, it can be renovated into mobile restuarant, mobile casino, mobile office and so on. We stick to elegant inner decoration and cozy environment. We use white light aluminum panels and apply gluing process between gaps; At the top of the interior room, we install LED Lamp. In the control room and generator power room, we use high aluminum lamps.; we install built-in air-conditioner, and apply a flap wood floor on the stage surface, nice ceiling at top, curtain beside windows; The generators are hiden at tail with sound proof material. There is many seats, bar table, mobile toilet, air conditioner, refridgerator and other customized equipment. Customers can fully use their own decoration method according to the actual needs or ask YEESO to do for them.
|Tech Parameter of YES-LUSSO LIZARD Truck|
|Chassis Model||Dong Feng East Wind||Emission standard||Euro IV|
|External Dimension||11600mm×2550mm×3930mm||Total Weight||25000kg|
|Generator Power||6L/162KW||Passenger number||3 people|
|Mounted outdoor LED Display|
|LED Screen Dimension||3840mm×1920mm||Pixel dimension||6mm|
||Max Power Consumption||1000W/㎡|
|Average Power consumption||500W/㎡||Life Span||100000H|
|LED Screen Protection Board||The LED screen has a movable cover, which can protect the LED screen from harm||
|Automatic Hydraulic Stage|
|Hydraulic Stage Space||3700mm×2000mm||Material||Elastic Board+Floor|
|Stage Load Capacity||200kg/㎡||Stage Ladders||800mm wide×2 units|
|Stage stretching way||It will stretch and flex in by hydraulic powe, the stage supporting legs are under the stage||Supporting devices||Stage fence|
|Screen Lifting System|
|Lifting system||Hydraulic Lifting||Lifting Height||1800mm|
|Hydraulic Supporting legs||Four supporting legs，lift up by 300mm，each can support 3T||
|Super Quiet Vehicle Specified Generator|
|Fuel Type||Diesal||Cylinders||Water cooling, four cylinders|
|Electric system（Hydraulic remote control）|
|Input voltage||380V||Output Voltage||220V|
|Current||50A||Power consumption||average power comsumption: 0.5wh/㎡|
six sockets totally
All hydraulic movement can be realized by remote control or buttons of control panel (including pause)
Processor: Core Duo CPU, graphics card: 1G, hard disk: 500G, optical drives: DVD, Memory: 2G
|Monitor||15 inch LCD monitor|
|Control system||LINSN/YEESO Point by point correction technology||
|External Frame Structure and Inner Decorations|
|Surface color||white||Inner space||7200mm×2000mm×2300mm|
white light aluminum panels and apply gluing process between gaps; At the top of the interior room, control room and generator room, we install LED Lamp.
|Container windows and doors||
Four doors totally,
Three harden glass windows totally
|air conditioner||imported hanging type vehicle specified air conditioner||carriage material||steel skeleton+alluminum board|
|Seat numbers||12-20 seats||Table||1- 2 bar table|
|Toilet||1 mobile toilet||refrigerator||1 refrigerator|
1.LED Screen Resolution（P10、P8、P6）、size
3.RVC、automobile data recorder、video processor
5.ISUZU Truck Chassis, Foton Truck Chassis
