LED Stage Trailer YES-C60

Product number::

  • C60
  • C60
  • C60
  • C60
  • C60
  • C60
  • C60
  • C60

◎ It has very large space which can be designed for any customized layout.

◎ It has lots of functions such as movie broadcast, stage performance, exhibits display and interactive experience.

◎ Automatic hydraulic design,can be easily set up and designed into a brand exhibition area.

◎ Most polupar road show vehicles.

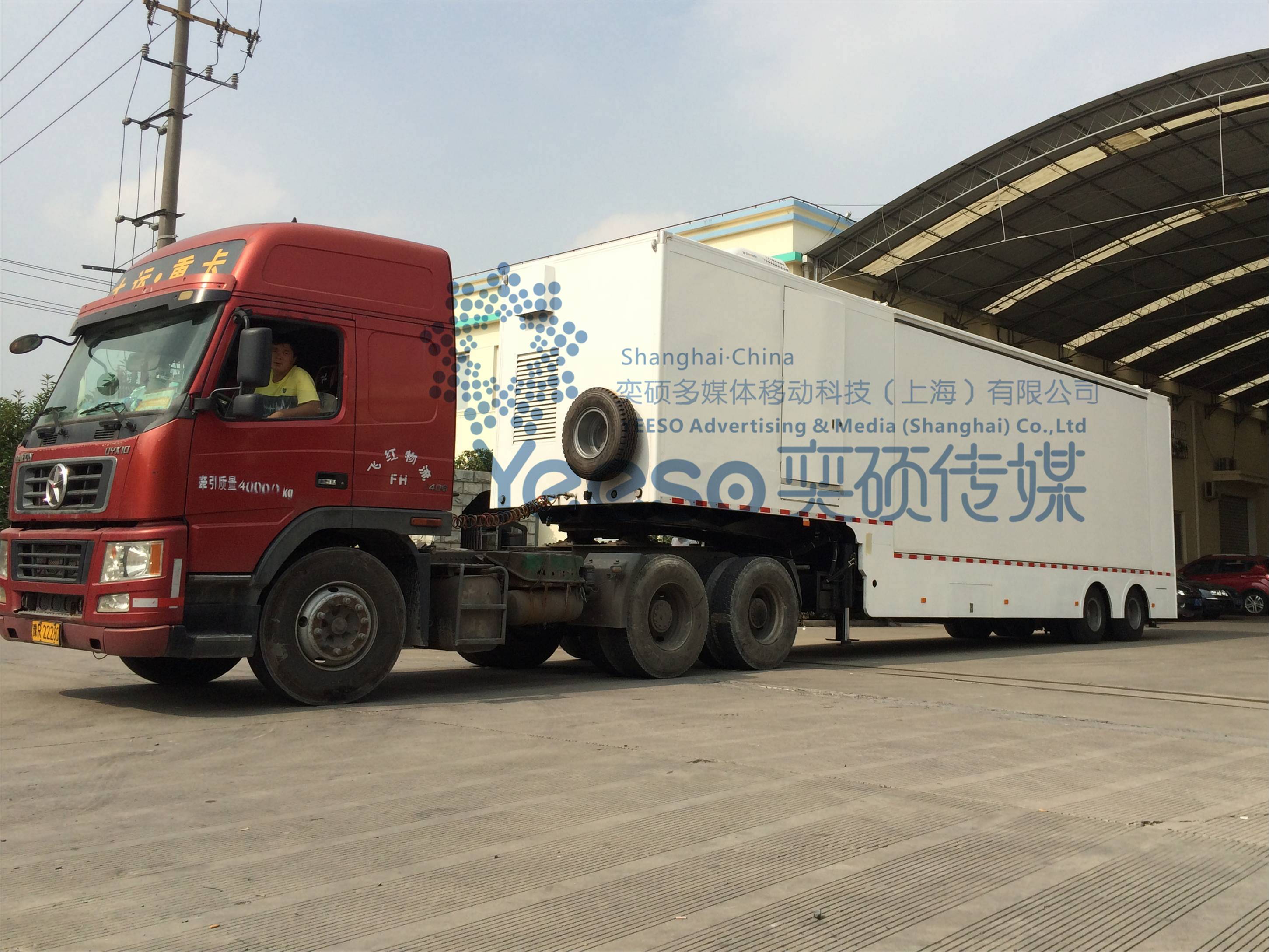

   YES-C60 LED stage container use the national standard of steel board, it is well forged into an integrity. The chassis can load heivy weight and it is sturdy and durable. The contrainer is also equiped with hydraulic stage and screen lifting system. We apply international standard towing pin of trailer, which is very easy to be towed by prime mover.

   This LED stage container model is well designed, it have a balanced structure. It is very popular in outdoor events and road show.With professional design and planing, its marketing effect will be very significant.

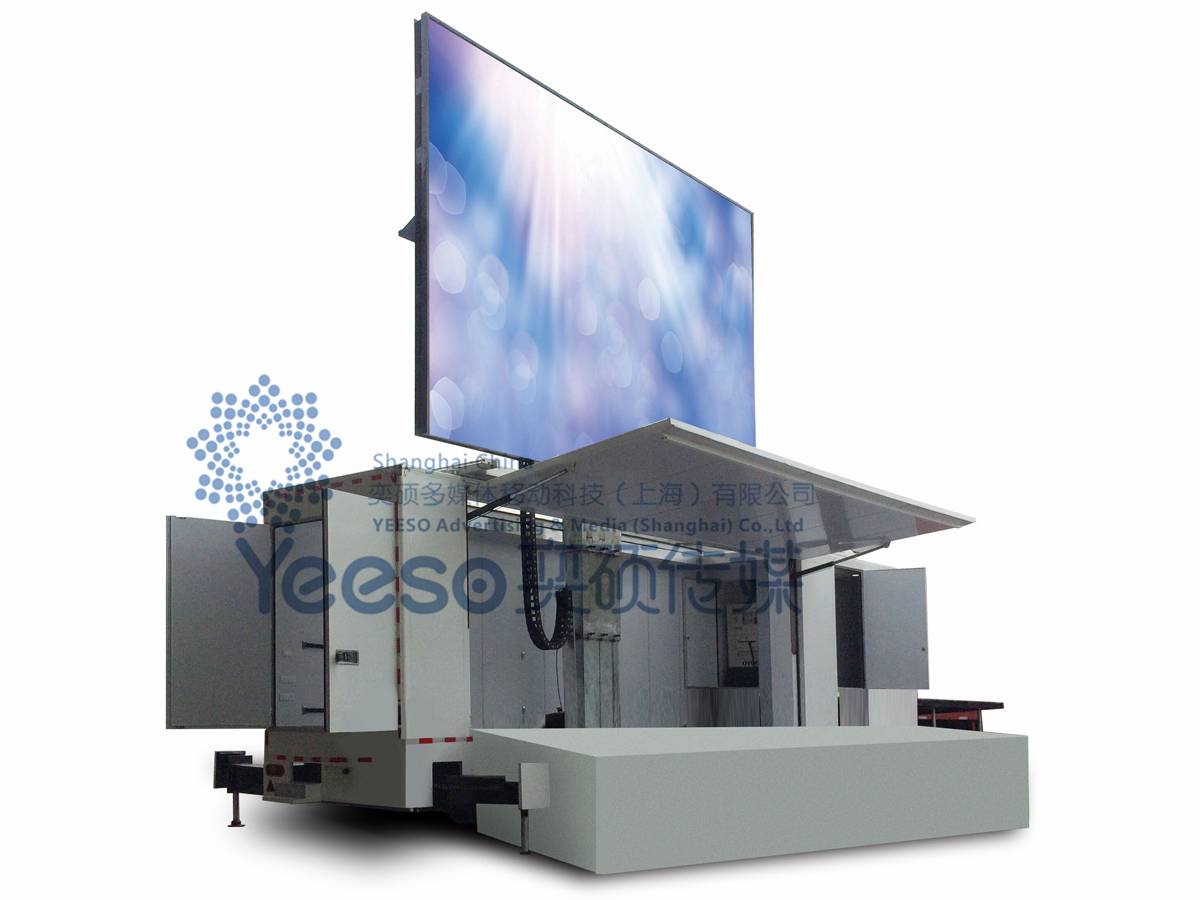

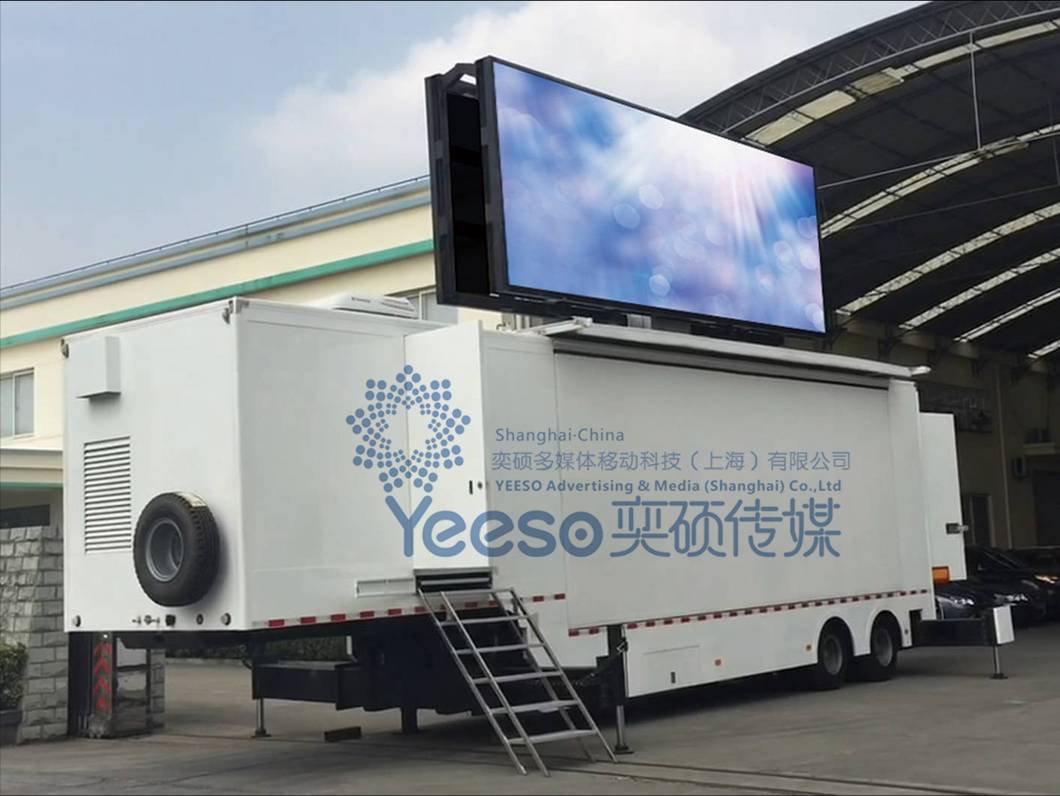

YES-C60 LED stage Container is equipped with outdoor full color LED screen. Its size is around 12 sqm. Its size can be customized according to client's requirement. The LED screen have screen folding/lifting and rotating system. It can lift up and down by hydraulic power.

    YESSO have a LED screen production line specially arranged for LED vehicles. We choose high brightness LED chip and fine raw material to build the LED screen. We apply high refresh rate technology to keep the LED screen have a smooth picture. YEESO have years of accumulated experience and advanced technology to improve our cabinet design, connector design, waterproof and shockproof design. We can make sure that the quality of our LED display to be the best.

  Our LED stage truck traileris equiped with 28㎡ automatic hydraulic stage to facilitate a variety of stage performances such as product demonstrations and other activities. Inside the stage, we use 20mm crack waterproof bamboo plywood, we use leather surface stage floor and hydraulic supporting legs. Our stage has a high tolerance stage frame structure, the stage plate can bear the weight per square meter up to 200KG, exceeds the strength of iron, so as to ensure the safety of personnel.

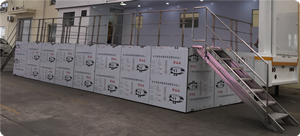

    The hydraulic stage have two control system: manual control and wireless control. Remote operation is simple and convenient. The stage can be easily set up in a short time. Stage has a fence and a step-ladder. Around the Stage we have extented panels as an extension of the exhibition space.

   Electric System:YEESO designed a vehicle-specific 16KW pole ultra-quiet generators. It has the features of low noise, low fuel consumption, light weight, easy to start and reliable to run.It has many advantages in its wink intake and output capacity, automotive shock-proof design, noise reduction and heat dissipation. For other major electrical components, we use Omron or Schneider brand. The whole vehicle has passed through the EU certification, it is completely compliant with EU safety standards.

  Multimedia devices:YEESO control panel cabinet has combined the vehicle-specific industrial computers, embedded car LCD monitors, high-power amplifier, speakers and so on. All the power, screen lifting system, hydraulic stage flexing system can be controlled by center control. It is very easy to use.

    YES-C40 LED stage Container has a large interior space around 10000mm × 2000mm × 2300mm, it can be renovated into exhibition rooms, conference rooms and experience area. We stick to elegant inner decoration and cozy environment. We use white light aluminum panels and apply gluing process between gaps; At the top of the interior room, we install LED Lamp. In the control room and generator power room, we use high aluminum lamps.; we install built-in air-conditioner, and apply a flap leather floor on the stage surface; The generators warehouse and computer control room are seperated by sliding door partition; We install hardened glass windows in the container. Customers can use their own decorationmethodaccording to the actual needs.

Tech parameter of YES-C40 13 meters long single deck LED stage Container truck trailer
Container body dimension
Brand YEESO External dimension 13000mm×2550mm×3980mm
Tires numbers 8 Fifth wheel dimension 50#
Container color White Distance between fifth wheel and ground 1250mm
Container material steel sketon+aluminum plate Total weight 13800kg
Interial space 10000mm×2000mm×2300mm,can be used as mobile office, mobile library and product promotion Wheelbase 7740mm+1310mm
Vehicle mounted outdoor LED screen
LED screen size 5400mm×3200mm pixel 8mm
LED chip R、G、B: Epistar
module dimension 128mm(W)×256mm(H)
brightness ≥6500cd
summit power consumption 1000W/㎡
average power consumption 500W/㎡ Life span 100000H
Screen lifting system can lift up the screen by 2 meters sceen folding rotating system Can fold and rotate the screen automatically
Hydraulic stage
hydraulic stage size 9000mm×3200mm material wooden floor+plastic flooring
stage load bearing 200kg/㎡ stage ladders 800mm wide×2 units
stage stretching system stage fold up by hydraulic power, the supporting legs are at the bottom of stage Supporting devices stage fences
Screen lifting system
lifting system hydraulic lifting lifting height 2000mm
hydraulic supporting legs Four supporting legs , can lift up by 300mm,each support 3T weight

Super quiet generator
Brand YEESO external dimension 1540mm×780mm×1070mm
power 16KW power super quiet
gasoline type diesal cylinders four cylinders, water cooling
displacement 4.33L cylinder diameter and stroke 114mm×120mm
Electric system(hydraulic control)
input voltage 380V output voltage 220V
current 50A average power consumption 0.5wh/㎡

6 plugs totally stick to the wall;two plugs in control room;four plugs in container,two plugs at right side, head side and tail side.

hydraulic devices

By remote control and control panel

Multimedia system
Industrial computer

CPU:Dual-core CPU,graphics card:1G,Hard disk:500G,CD driver:DVD,RAM:2G

Power amplifier 200W Speaker 200W
Control system LINSNYEESO Point by point correction technology

External frame structure and internal decoration
surface print white air conditioner top hanged air conditioner:3600W cooling/1600W heating
inner decoration

white light aluminum panels and apply gluing process between gaps; At the top of the interior room, control room and generator room, we install LED Lamp.

container window and doors

four doors totally

three harden glass windows totally

Other options

1.LED Screen resolutions(P10、P8、P6)、size and dimension

2.Surface printing colpr(customized) processor

4.extended room mover
