Mobile LED Stage Trailer YES-C40

•
  YES-C40
•
  C40
•
  C40
•
  C40
•
  C40

◎ It has very large space which can be designed for any customized layout.

◎ It has lots of functions such as movie broadcast, stage performance, exhibits display and interactive experience.

◎ Automatic hydraulic design，can be easily set up and designed into a brand exhibition area.

◎ Most polupar road show vehicles.

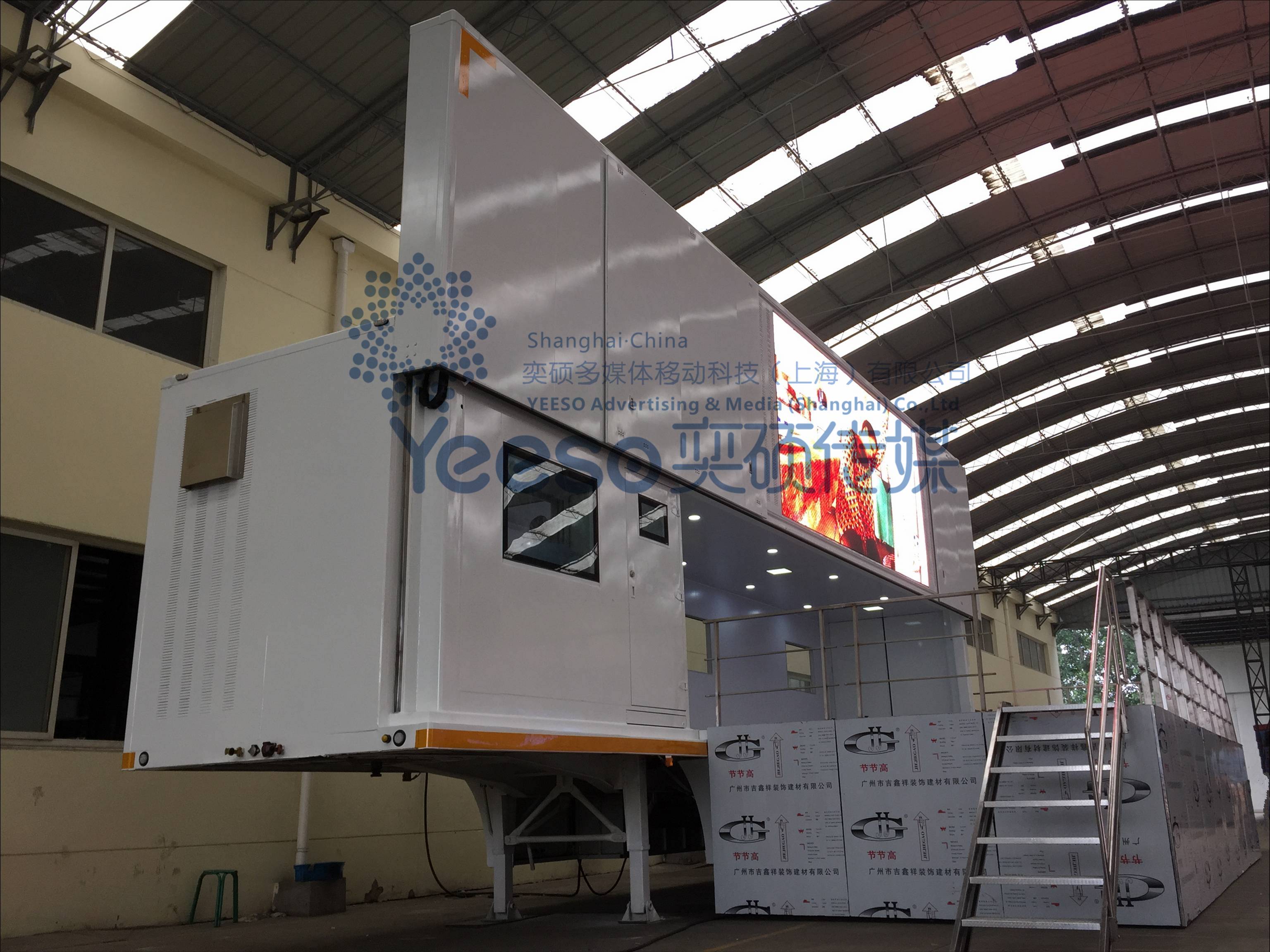

    YES-C40 LED stage container use the national standard of steel board, it is well forged into an integrity. The chassis can load heivy weight and it is sturdy and durable. The contrainer is also equiped with hydraulic stage and screen lifting system. We apply international standard towing pin of trailer, which is very easy to be towed by prime mover.

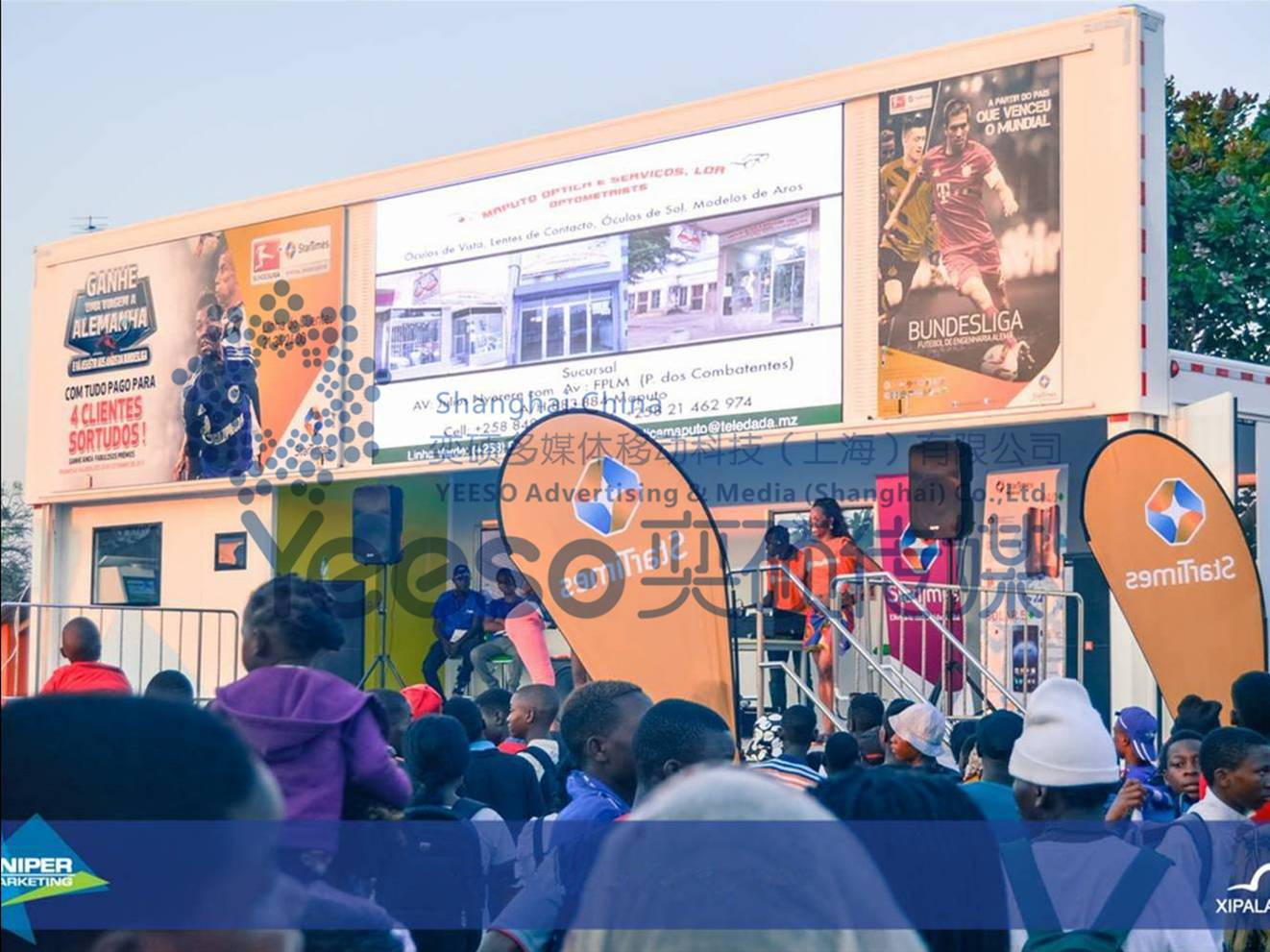

    This LED stage container model is well designed, it have a balanced structure. It is very popular in outdoor events and road show.With professional design and planing, its marketing effect will be very significant.

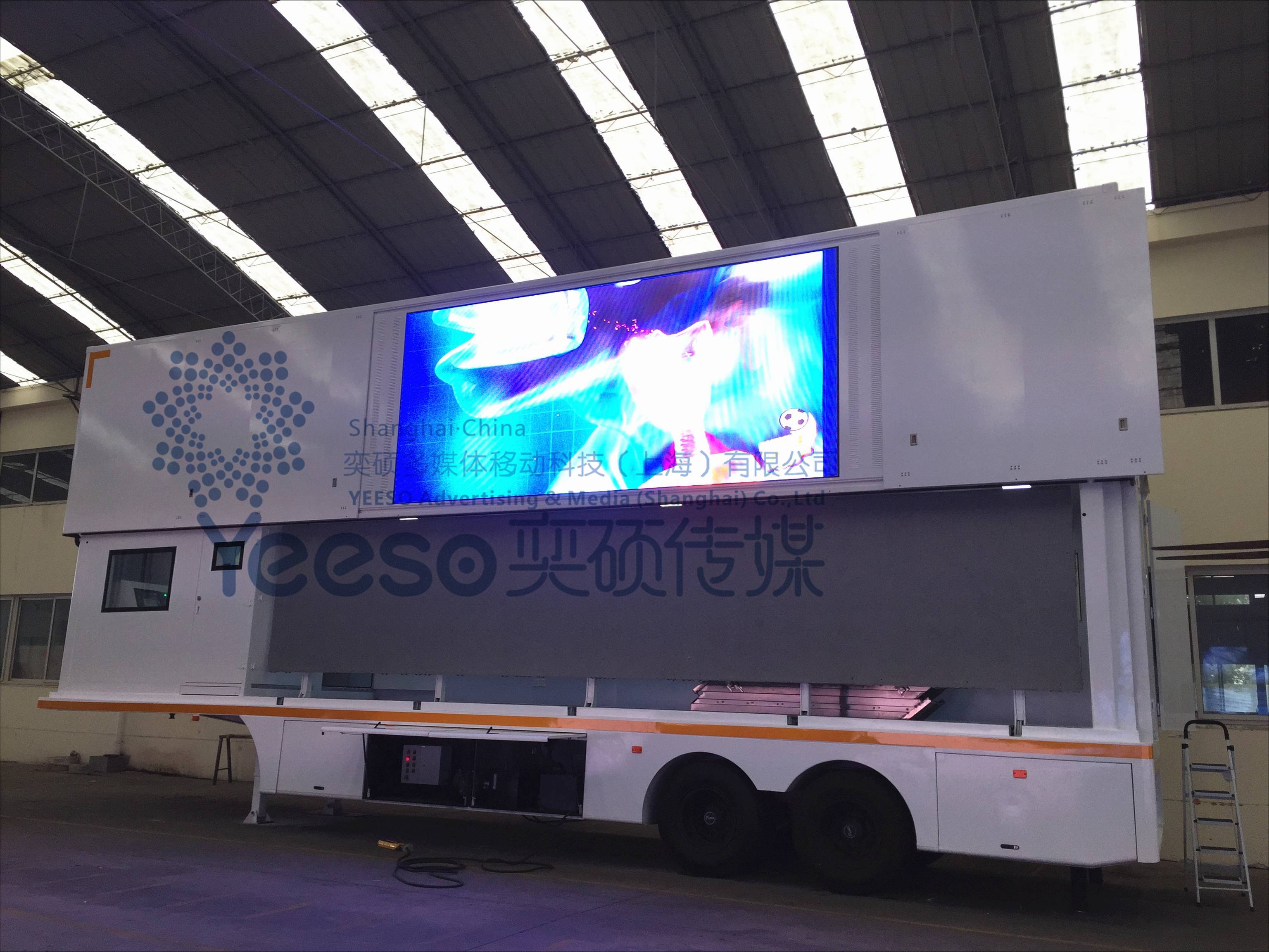

    YES-C40 LED stage Container is equipped with outdoor full color LED screen. Its size is around 12 sqm. Its size can be customized according to client's requirement. The LED screen have slideable door plank. You can close the plank to protect the LED screen when your event is finished.

    YESSO have a LED screen production line specially arranged for LED vehicles. We choose high brightness LED chip and fine raw material to build the LED screen. We apply high refresh rate technology to keep the LED screen have a smooth picture. YEESO have years of accumulated experience and advanced technology to improve our cabinet design, connector design, waterproof and shockproof design. We can make sure that the quality of our LED display to be the best.

  Our LED stage truck traileris equiped with 28㎡ automatic hydraulic stage to facilitate a variety of stage performances such as product demonstrations and other activities. Inside the stage, we use 20mm crack waterproof bamboo plywood, we use leather surface stage floor and hydraulic supporting legs. Our stage has a high tolerance stage frame structure, the stage plate can bear the weight per square meter up to 200KG, exceeds the strength of iron, so as to ensure the safety of personnel.

    The hydraulic stage have two control system: manual control and wireless control. Remote operation is simple and convenient. The stage can be easily set up in a short time. Stage has a fence and a step-ladder. Around the Stage we have extented panels as an extension of the exhibition space.

   Electric System：YEESO designed a vehicle-specific 16KW pole ultra-quiet generators. It has the features of low noise, low fuel consumption, light weight, easy to start and reliable to run.It has many advantages in its wink intake and output capacity, automotive shock-proof design, noise reduction and heat dissipation. For other major electrical components, we use Omron or Schneider brand. The whole vehicle has passed through the EU certification, it is completely compliant with EU safety standards.

  Multimedia devices：YEESO control panel cabinet has combined the vehicle-specific industrial computers, embedded car LCD monitors, high-power amplifier, speakers and so on. All the power, screen lifting system, hydraulic stage flexing system can be controlled by center control. It is very easy to use.

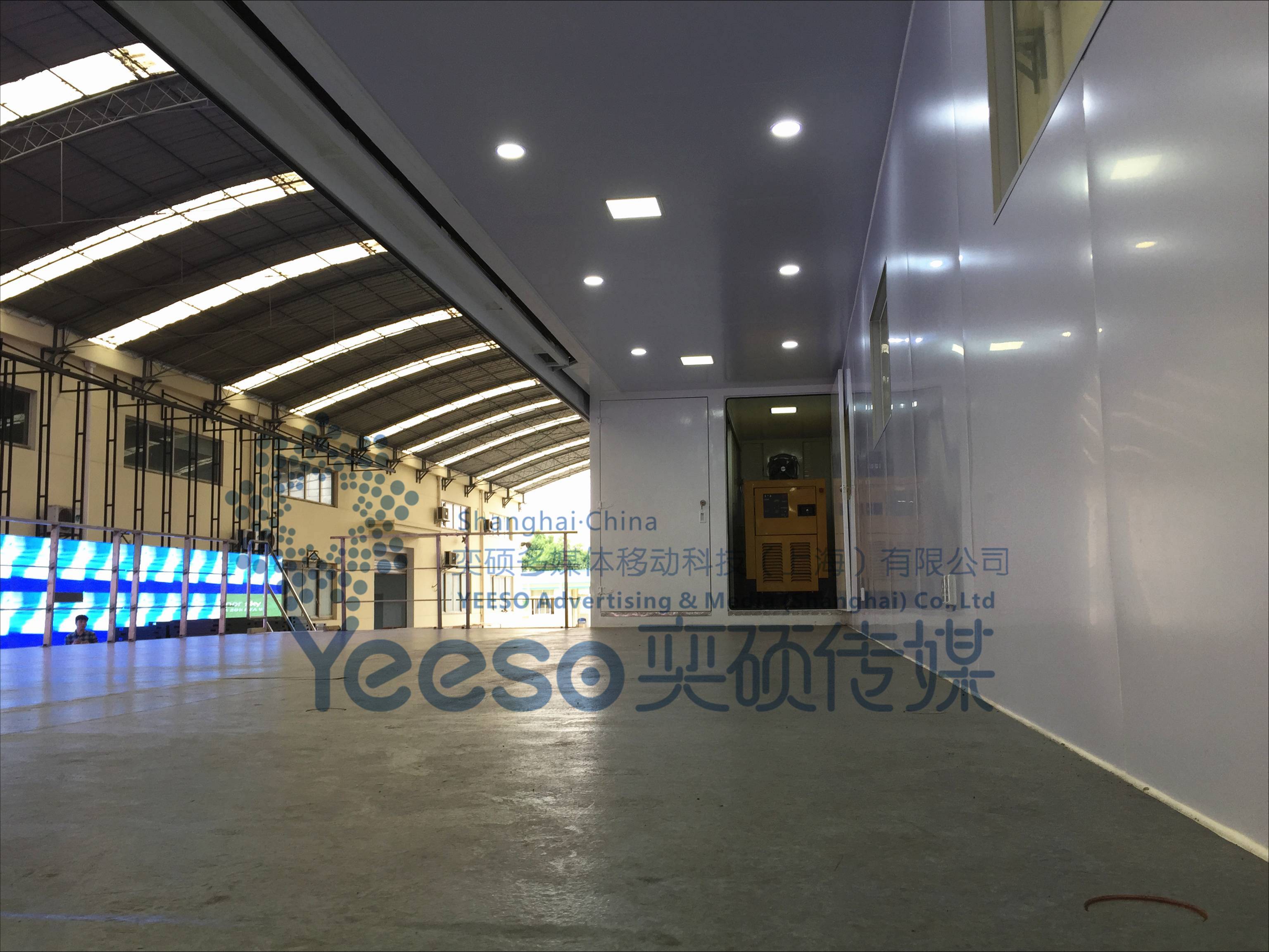

    YES-C40 LED stage Container has a large interior space around 10000mm × 2000mm × 2300mm, it can be renovated into exhibition rooms, conference rooms and experience area. We stick to elegant inner decoration and cozy environment. We use white light aluminum panels and apply gluing process between gaps; At the top of the interior room, we install LED Lamp. In the control room and generator power room, we use high aluminum lamps.; we install built-in air-conditioner, and apply a flap leather floor on the stage surface; The generators warehouse and computer control room are seperated by sliding door partition; We install hardened glass windows in the container. Customers can use their own decorationmethod according to the actual needs.
