LED Stage Truck YES-V6S
◎ It use JAC chassis, very strong to hit the road
◎ It has lots of functions such as movie broadcast, stage performance, exhibits display and interactive experience.
◎ Automatic hydraulic design,can be easily set up and designed into a brand exhibition area.
◎ Most polupar road show vehicles.

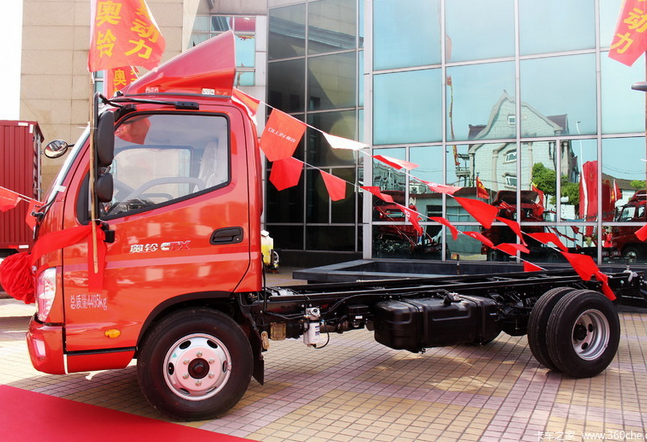

Model:Foton Ollin displacement/power:1.995L/80KW

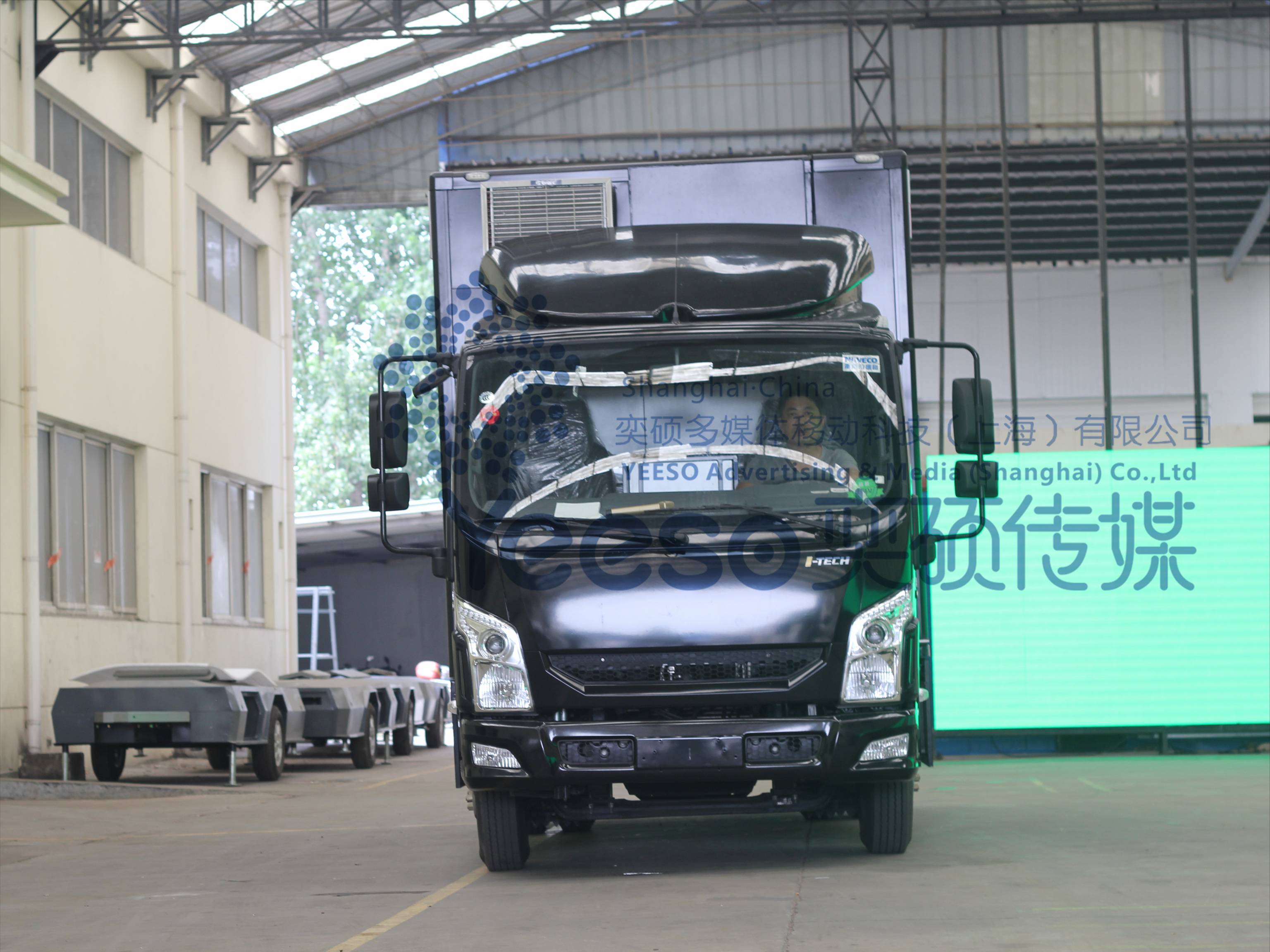

YES-V6 LED truck use Foton Ollin as the carrier. It can also meet the national IV emission standards. The cabin will streamlined mask, honeycomb shape front grille, modular crystal shaped headlamps. The driving room has pacious and comfortable driving space, and humanized interior design, as well as high security level. The truck has the features of drag coefficient, low noise and high speed, comfort driving. The truck body applies flow lines and prominent front design curves to enhance the three-dimensional visual perception. The cab use four-point cab suspension and air bag to increase shock absorption. It is very safe and stable to drive on road.

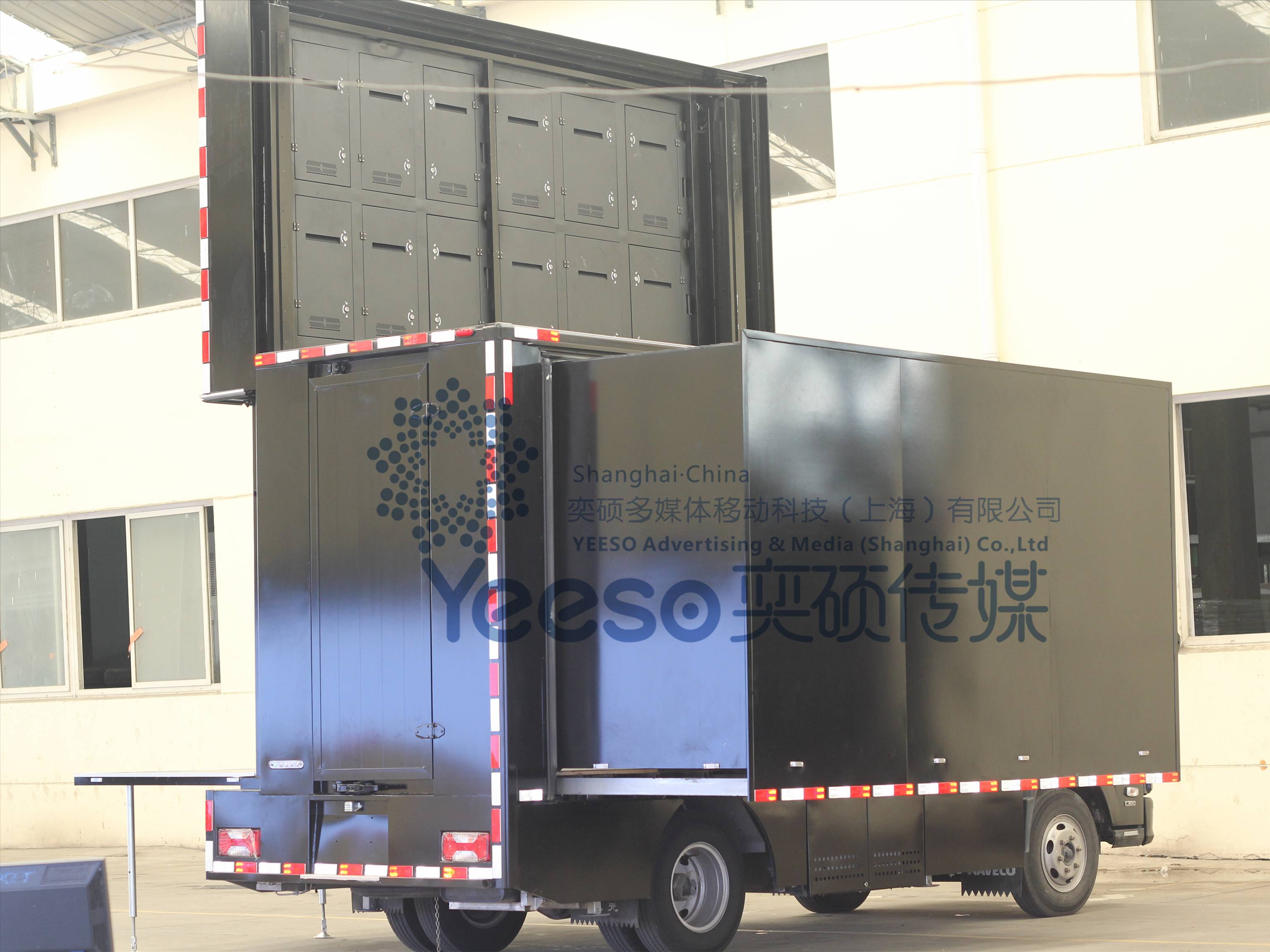

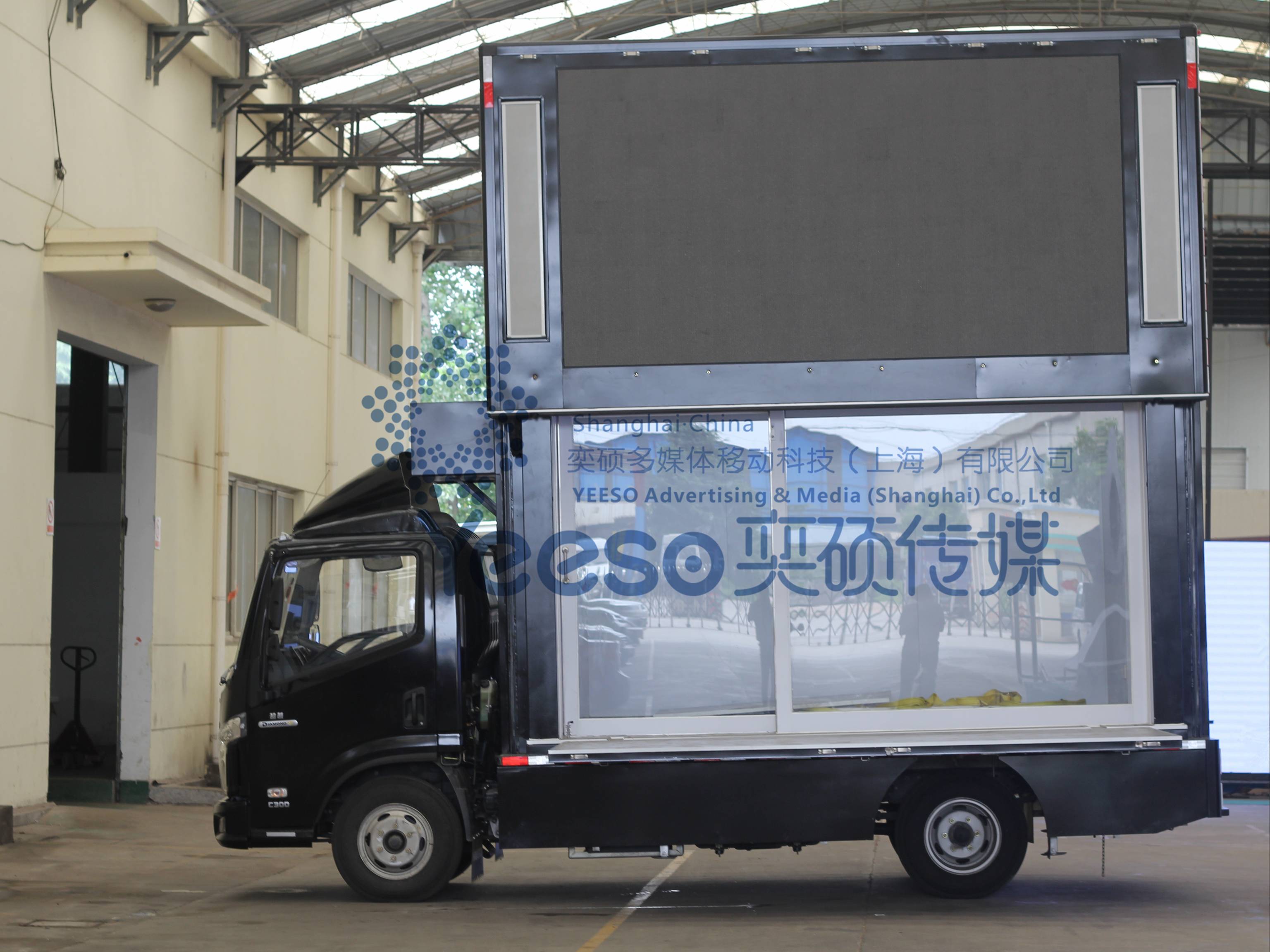

YES-V6s LED stage truck is equipped with 10sqm outdoor full color LED screen. Its size can be customized according to client's requirement. The LED screen have slideable door plank. You can close the plank to protect the LED screen when your event is finished.
YESSO have a LED screen production line specially arranged for LED vehicles. We choose high brightness LED chip and fine raw material to build the LED screen. We apply high refresh rate technology to keep the LED screen have a smooth picture. YEESO have years of accumulated experience and advanced technology to improve our cabinet design, connector design, waterproof and shockproof design. We can make sure that the quality of our LED display to be the best.
Dong feng LED truck is equiped with 4.8 ㎡ automatic hydraulic stage to facilitate a variety of stage performances such as product demonstrations and other activities. Inside the stage, we use 20mm crack waterproof bamboo plywood, we use leather surface stage floor and hydraulic supporting legs. Our stage has a high tolerance stage frame structure, the stage plate can bear the weight per square meter up to 200KG, exceeds the strength of iron, so as to ensure the safety of personnel.
The hydraulic stage have two control system: manual control and wireless control. Remote operation is simple and convenient. The stage can be easily set up in a short time. Stage has a fence and a step-ladder. Around the Stage we have extented panels as an extension of the exhibition space.
Electric System:YEESO designed a vehicle-specific 16KW pole ultra-quiet generators. It has the features of low noise, low fuel consumption, light weight, easy to start and reliable to run.It has many advantages in its wink intake and output capacity, automotive shock-proof design, noise reduction and heat dissipation. For other major electrical components, we use Omron or Schneider brand. The whole vehicle has passed through the EU certification, it is completely compliant with EU safety standards.
Multimedia devices:YEESO control panel cabinet has combined the vehicle-specific industrial computers, embedded car LCD monitors, high-power amplifier, speakers and so on. All the power, screen lifting system, hydraulic stage flexing system can be controlled by center control. It is very easy to use.

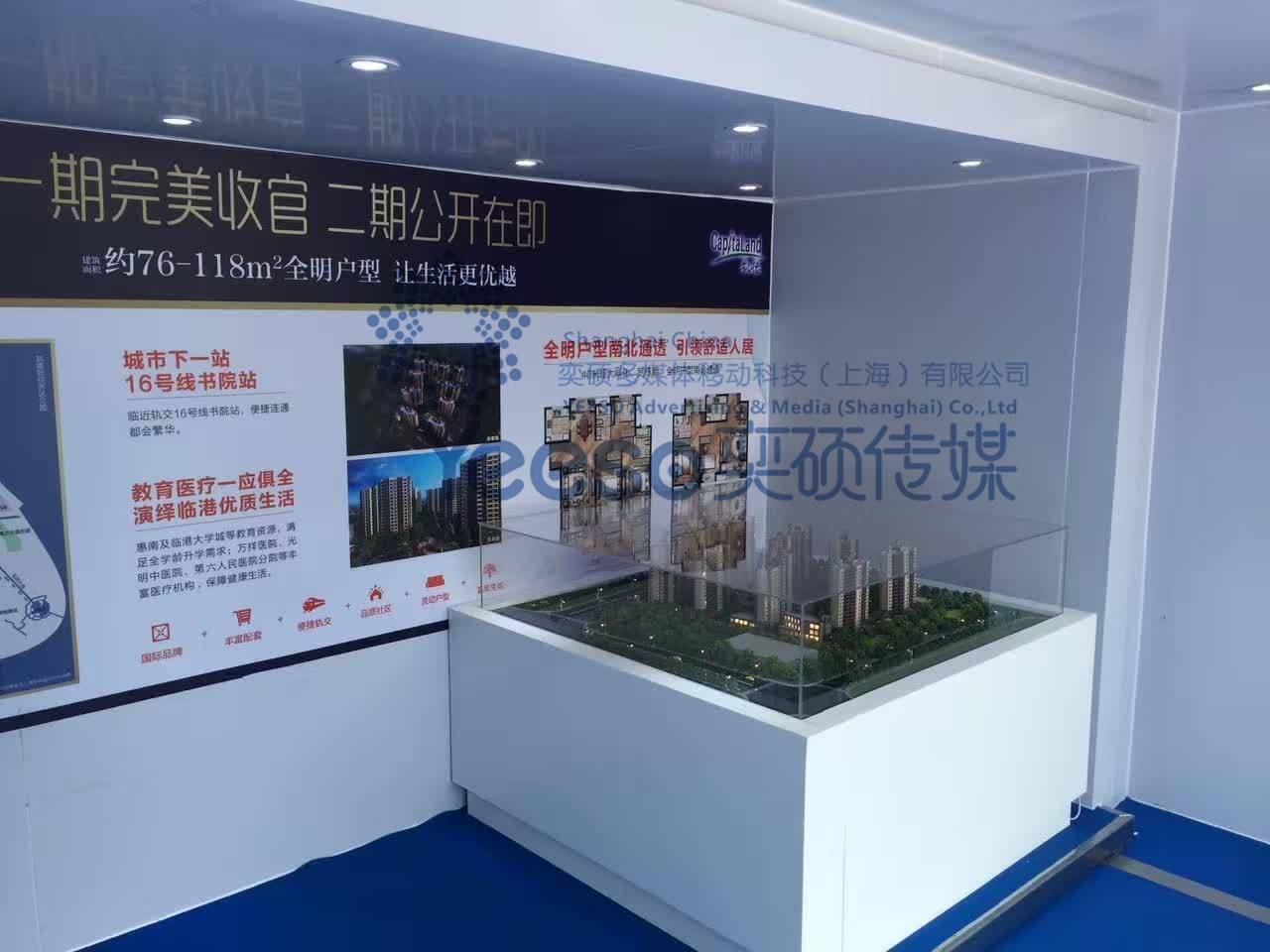

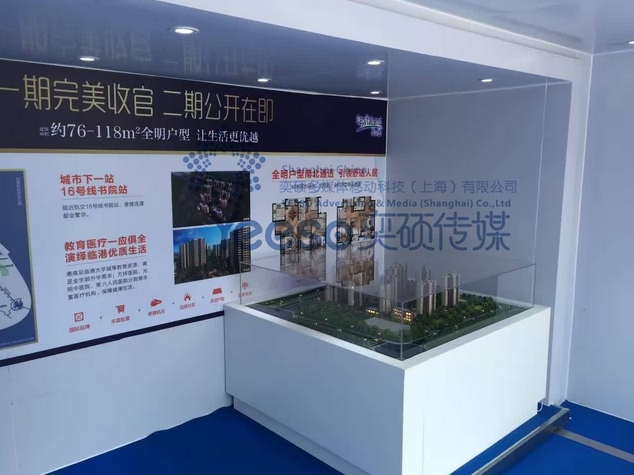

YEESO YES-V6 LED stage truck has a large interior space around 4200mm×2000mm×2300mm, it can be renovated into exhibition rooms, conference rooms and experience area. We stick to elegant inner decoration and cozy environment. We use white light aluminum panels and apply gluing process between gaps; At the top of the interior room, we install LED Lamp. In the control room and generator power room, we use high aluminum lamps.; we install built-in air-conditioner, and apply a flap floor on the stage surface; Customers can use their own decorationmethod according to the actual needs.
Tech Parameter of YES-V6 LED Stage Truck | |||
Chassis dimension | |||
Chassis brand | Foton | Emission level | National IV standard |
External dimension |
5990mm×2040mm×3100mm |
Total Weight | 1959KG |
Wheelbase | 3360mm | curb weight | 4550kg |
Generator power | 1.995L/80KW | passenger number | 2 people |
Mounted LED screen(left side) | |||
LED screen size | 3520mm*1920mm | pixel | 8mm |
LED Chip |
R、G、B: Epistar |
LED module dimension | 320mm(W)×320mm(H) |
Brightness |
≥6500cd |
summit power | 1000W/㎡ |
Average power comsuption | 500W/㎡ | life span | 100000H |
Hydraulic stage | |||
stage dimension | 3200mm×1300mm | ladders number | 1 set |
Hydraulic system | hydraulic flexing and stretching | Control method | remote control |
Hydraulic extended room | |||
Extended area | 1.2 meters width * 3.2 meters long * 1.8 meters high | etended type | hydraulic |
Screen hydraulic lifting system | |||
hydraulic system | Hydraulic lifting | Lifting height | 1500mm |
Super quiet generator | |||
Brand | YEESO | External dimension | 1540mm×780mm×1070mm |
Power | 8KW | Power | Super quiet |
gasoline type | diesal | cylinder number | three cylinders, water cooling |
displacement | 1.995L | cylinder×stroke | 84mm x 90mm |
External power source | |||
input voltage | 380V | voltage output | 220V |
current | 50A | power | average power comsumption: 0.5wh/㎡ |
Multimedia control system | |||
Industrial computer | Processor: Core Duo CPU, graphics card: 1G, hard disk: 500G, optical drives: DVD, Memory: 2G | Monitor | 15 inch LCD monitor |
Power amplifier | 200W | Speakers | 200W |
Control system | LINSN/YEESO point by point correcting system |
|
|
External frame sturcture and interior decoration | |||
surface glue | white | interiar decoration | fire proof board |
axle box | metal plate welding | water proof processing | whole truck glue pouring |
fitting options | |||
1.LED screen resolution(P10、P8、P6) 2.surface color painting(according to client's request) 3.Double sides LED screen or Triple sides LED screen. 4.Hydraulic stage、fence、pedal、ladder 5.video processor, air-conditioner 6,asynchronous control system |
