LED Screen Trailer YES-T5

Product number：：

GET A QUOTATION & DETAILED SPECIFICATION GO BACK

LED Screen Trailer YES-T5
LED Screen Trailer YES-T5
LED Screen Trailer YES-T5
LED Screen Trailer YES-T5
LED Screen Trailer YES-T5

This is the YEESO's most fancy trailer product. Its hand forged into beautiful symmetrical shape. Its surface apply milk white color. Its a true perfect combination of art and mechanic.

◎ It is accord with mechanics principle, it has flexible and robust chassis with braking system, which is safe and reliable.
◎ We use patented technology and high refresh rates-by-point correction technology to ensure perfect clarity video.

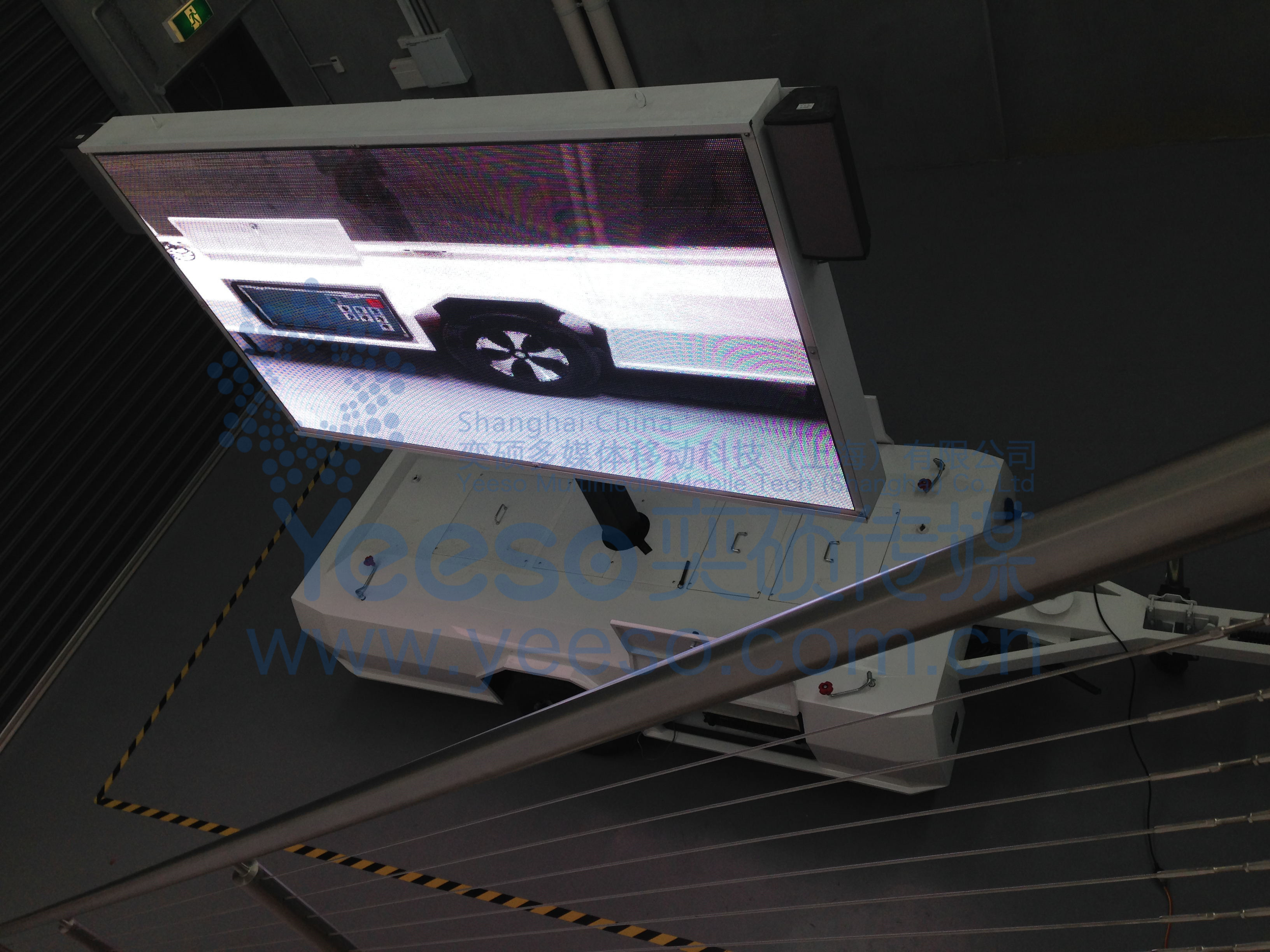

◎ Patent hydraulic screen lifting/ rotating system. it can be towed by car along the road.
◎ We use imported hydraulic system to ensure accuracy.
◎ synchronous control system,which enable the function of live broadcast, karaoke OK and other activities.

Tech parameters of LED Trailer YES-T5
Chassis information
Brand	YEESO	External Dimension	4900mm×1600mm×2550mm
turning radius	6m	Total weight	1350KG
Tire size	16 inch	Tire numbers	2 units
max speed	60km/h
Vehicle mounted LED screen
LED screen dimension	2880mm×1600mm	Pixel	8mm（P10、P6 option）
LED chip	R、G、B: Epistar	module size	320mm（W）×320mm（H）
Brightness	≥6500cd	max consumption	1000W/㎡
average consumption	500W/㎡	life span	100000H
Mechanical control system
screen lifting system	hydraulic lifting，360 degree rotating	Lifting height	1200mm
Electric system
input voltage	380V	output voltage	220V
electricity	50A	average power consumption	0.5wh/㎡
Multimedia system
power amplifier	200W	speakers	200W
video processor	can support USB/DVD/HDMI/DVI/VGA
External frame structure
surface paint	white	metal plate structure	cold rolled board
brake	hydraulic brake
optional fittings
1.LED screen resolution（P10、P8、P6）、LED screen size 2.car paint color 3.asynchronous control system 4.generator 5.video processor
