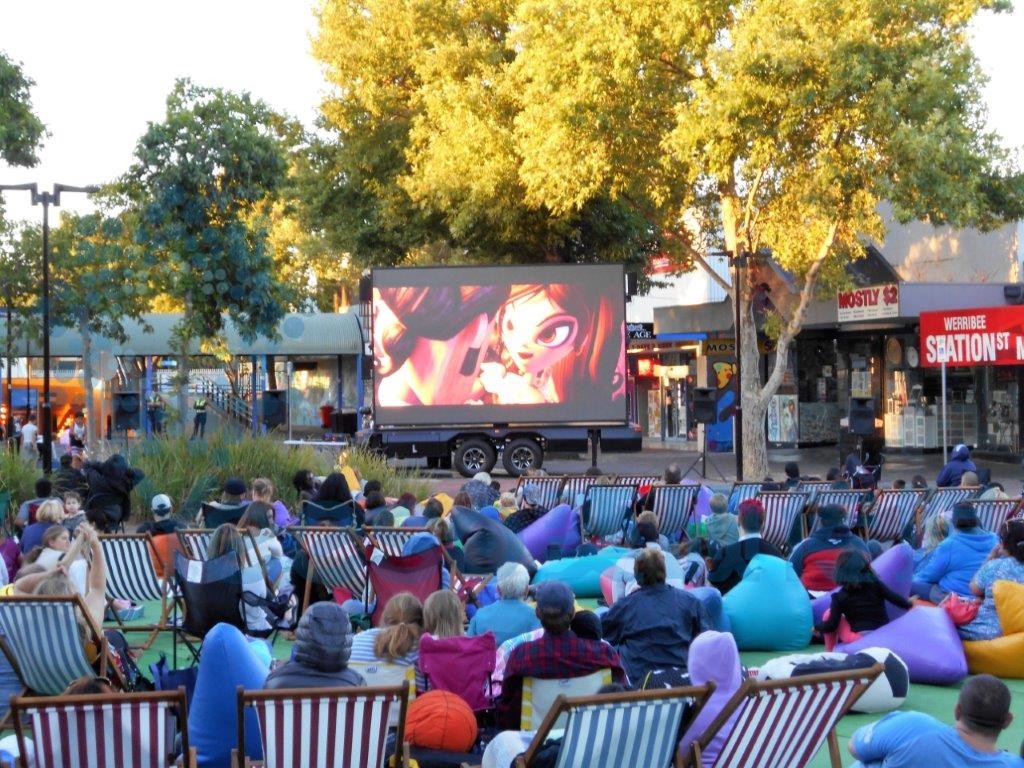

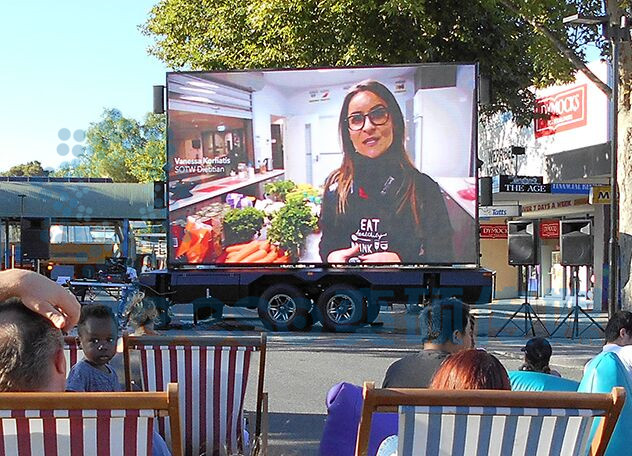

LED Video Trailer T16
This is the YEESO's largest trailer product. Its hand forged into beautiful symmetrical shape. Its surface apply glow black color. Its a true perfect combination of art and mechanic.
◎ It is accord with mechanics principle, it has flexible and robust chassis with braking system, which is safe and reliable.
◎ We use patented technology and high refresh rates-by-point correction technology to ensure perfect clarity video.
◎ Patent hydraulic screen lifting/ rotating system. it can be towed by car along the road.
◎ We use imported hydraulic system to ensure accuracy.
◎ synchronous control system, can do live broadcast.
| Tech parameters of LED Trailer YES-T16 | |||
| Chassis information | |||
| Brand | YEESO | External Dimension |
7800mm×1800mm×2700mm |
| turning radius | 6m | Total weight | 4000KG |
| Tire size | 16 inch | Tire numbers | 4 units |
| max speed | 60km/h |
|
|
| Vehicle mounted LED screen | |||
| LED screen dimension | 5.76 m x 2.72m | Pixel | 10mm（P8、P6 option） |
| LED chip |
R、G、B: Epistar |
module size | 320mm（W）×160mm（H） |
| Brightness |
≥6500cd |
max consumption | 1000W/㎡ |
| average consumption | 500W/㎡ | life span | 100000H |
| Mechanical control system | |||
| screen lifting system | hydraulic lifting system/ hydraulic folding system | Lifting height | 1500mm |
| Electric system | |||
| input voltage | 380V | output voltage | 220V |
| electricity | 50A | average power consumption | 0.5wh/㎡ |
| Multimedia system | |||
| power amplifier | 400W | speakers | 400W |
| External frame structure | |||
| surface paint | Black | metal plate structure | cold rolled board |
| brake | hydraulic brake |
|
|
| optional fittings | |||
|
1.LED screen resolution（P10、P8、P6）、LED screen size 2.car paint color 3.asynchronous control system 4.generator 5.video processor |
|||
